ATI Damper - 7.425in - Steel LW - 6/4 Grv - LS1/LS2 - F & V Body - 3 Ring ATI APPATI917242
Click to zoom in

ATI Damper - 7.425in - Steel LW - 6/4 Grv - LS1/LS2 - F & V Body - 3 Ring

ATI
APPATI917242
800157032271
Crankshaft Dampers
10 Units In Stock - Ships Next Business Day
$ 498.50
$ 498.50

SKU: ATI917242 | UPC: 800157032271

ATI Damper 7.425in Steel LW 6/4 Grv LS1/LS2 F-Body V-Body 3 Ring 1998-2002 Camaro Firebird CTS-V

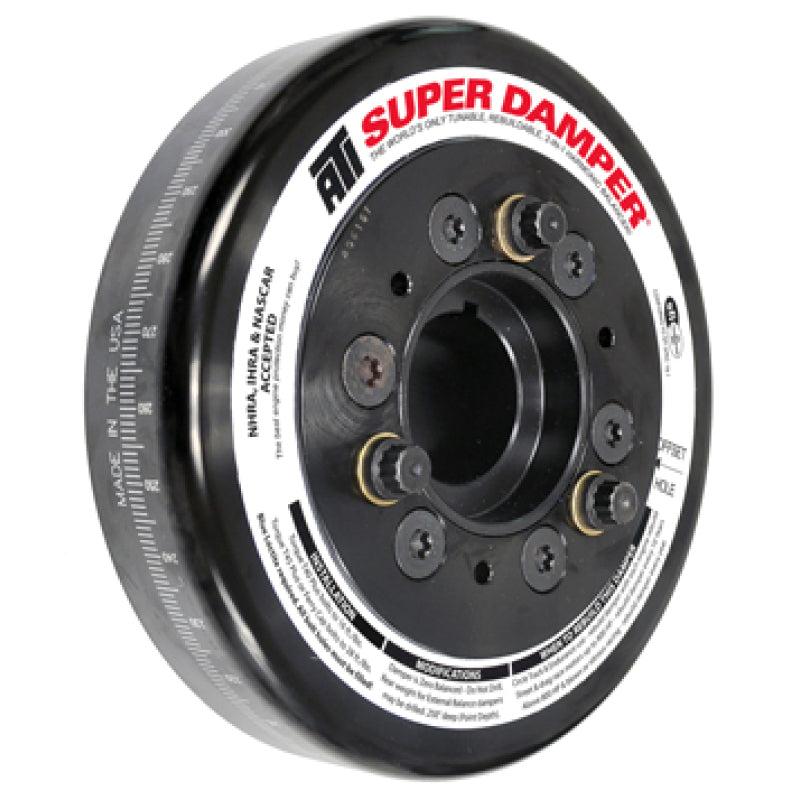

ATI 917242 Super Harmonic Damper provides precise crankshaft vibration control for 1998-2002 Chevrolet Camaro and Pontiac Firebird LS1 F-body vehicles plus 2004-2005 Cadillac CTS-V LS6 applications. The 7.425-inch diameter lightweight steel design with 6/4 groove pulley register aligns with stock pulley patterns for direct fitment. Three-ring timing marks allow accurate ignition timing at high RPM for consistent power delivery.

Key Features

  • SFI 18.1 Certification: Meets racing safety standards for drag strip and circle track with durability under extreme loads.
  • Lightweight Steel Construction: Cuts front-end rotational weight versus OEM for quicker engine revving and sharper throttle response.
  • Neutral Balance: Internally balanced for LS1/LS2 crankshafts to ensure smooth operation without extra weights.
  • 6/4 Groove Pulley Register: Works with 6-rib or 4-rib serpentine belts in F-body accessory drives.
  • 3-Ring Timing Marks: Etched marks visible through timing cover for precise top dead center during builds or tuning.

Product Notes

  • SFI stamp on unit required for sanctioned racing events.
  • Lifetime warranty to original purchaser covers defects in materials and workmanship.
  • Ships in protective packaging 9 x 9 x 9 inches 11.8 lbs.

Installation Notes

  • Professional installation recommended.
  • Requires ATI or equivalent 3/8-24 threaded puller tool for removal and install.
  • Bolts directly to LS crankshaft with M16x2.0 center bolt torque to 240 ft-lbs.

This Part Fits

Year Make Model Submodel
1998-2002 Chevrolet Camaro Base Z28 SS
1998-2002 Pontiac Firebird Base Formula Trans Am WS6
2004-2005 Cadillac CTS-V Base

Why Choose ATI?

  • Over 50 years engineering high-performance dampers for NHRA Pro Stock and Top Fuel teams.
  • Machined in USA from billet steel with O-ring sealed elastomer for zero slippage.
  • Extensive dyno testing tunes frequency to LS .650-inch stroke for broad RPM protection.

Frequently Asked Questions

  • Q: Will this damper fit LS2 engines in F-body swaps?
    A: Yes fits LS1 LS2 LS6 crankshafts in 1998-2002 F-body Camaro Firebird and 2004-2005 CTS-V with matching pulley register.
  • Q: What material and weight savings does it offer?
    A: Lightweight steel shell weighs 11.8 lbs lighter than cast OEM for reduced inertia.
  • Q: Does it include warranty and what are install requirements?
    A: Lifetime warranty applies uses factory crank bolt and specific puller professional torque recommended.

Shipping & Handling

  • Method: UPS Ground or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Foam protected box 9 x 9 x 9 inches
  • Weight: 11.8 lbs
