SKU: BC6208

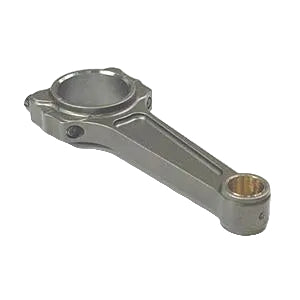

Brian Crower Connecting Rods - Nissan SR20DET - 5.366 - BC625+ w/ARP Custom Age 625+ Fasteners - Fits 1989-1998 Nissan 240SX
Brian Crower BC6208 connecting rods deliver strength for Nissan SR20DET engines in 1989-1998 Nissan 240SX models. These H-beam rods measure 5.366 inches with BC625+ forged steel construction and ARP Custom Age 625+ fasteners for high-horsepower builds. They support boosted applications and high RPM while maintaining balance at 530 grams per rod.
Key Features
- BC625+ Forged Steel: Proprietary alloy withstands over 2000 horsepower in drag and circuit use
- ARP Custom Age 625+ Bolts: 7/16-inch diameter bolts rated to 260000 psi tensile strength for secure cap retention
- H-Beam Design: Optimized shape reduces flex under extreme cylinder pressures and RPM
- Precision Dimensions: 5.366-inch length 136.4mm big end bore 2.087-inch 53mm small end bore 0.866-inch 22mm
- Lightweight Build: 530 grams per rod set of 4 for quick revving and power gains
Product Notes
- Inspect bores and resize if needed during rebuild
- Apply assembly lube to bearings and bolts before install
- Set ships in protective sleeves box dimensions 14 x 6 x 4 inches
Installation Notes
- Professional installation recommended.
- Requires engine disassembly and crank sizing check
- Includes ARP bolts torque to 95 ft-lbs with ARP moly lube
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1991-1993 | Nissan | 240SX | Base |
| 1995-1998 | Nissan | 240SX | Base |
| 1991-1992 | Nissan | 240SX | LE |
| 1997-1998 | Nissan | 240SX | LE |
| 1989-1998 | Nissan | 240SX | SE |
| 1989-1990 | Nissan | 240SX | XE |
Why Choose Brian Crower?
- Proven in SR20DET race cars from drag strip to track day
- CNC machined in USA for exact tolerances and balance
- Backed by decades of engine building experience
Frequently Asked Questions
-
Q: Will BC6208 rods work with stock SR20DET pistons?
A: Yes matches OEM 5.366-inch center-to-center length and small end bore for direct fit -
Q: What material and bolt specs?
A: BC625+ high-strength forged steel rods with ARP Custom Age 625+ 7/16-inch bolts throughout -
Q: What warranty coverage?
A: Limited lifetime warranty against manufacturing defects when installed correctly
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Set of 4 rods in foam sleeves sturdy box 14 x 6 x 4 inches
- Weight: 8.5 lbs
