SKU: DBA52224V2BLKS / UPC: 9316391426383

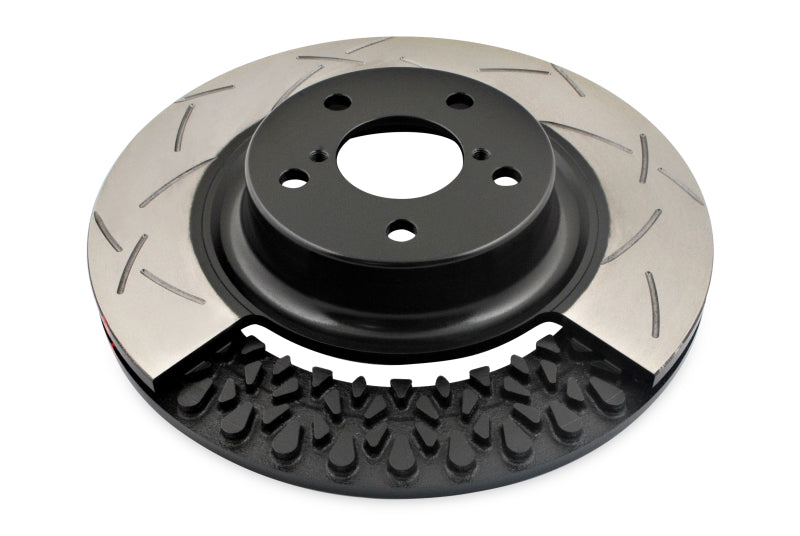

DBA 5000 Series T3 Slotted 2-Piece Front Brake Rotors for 2008-2016 Mitsubishi Lancer Evolution X - Black Hat Assembled
The DBA 5000 Series T3 slotted 2-piece front rotors, engineered for drivers who demand consistent power and control on street, track, or spirited drives. These rotors stand out among aftermarket and stock options by managing heat buildup more effectively during repeated hard stops, ensuring shorter stopping distances and reliable pedal feedback that keeps you ahead. For Evo X owners seeking rotors that handle the 4B11T turbo's torque without compromise, this assembly delivers the direct fit and durability that make it the clear pick for long-term performance.
Vehicle Fitment
Compatible with the following:
- Make: Mitsubishi
- Model: Lancer Evolution X (Evo 10, including MR, GSR, RS, and Final Edition variants)
- Years: 2008-2016
- Position: Front
- Engine: 2.0L 4B11T turbocharged
- Calipers: Direct replacement for OEM Brembo 4-piston setups (cross-references Brembo XA2.91.32/33)
Notes: Fits models with 17-inch wheels and performance packs; verify exact trim for 2016 Final Edition compatibility
What's Included in the Purchase
This SKU provides a complete, pre-assembled unit for one side (sold individually—order two for a full front pair):

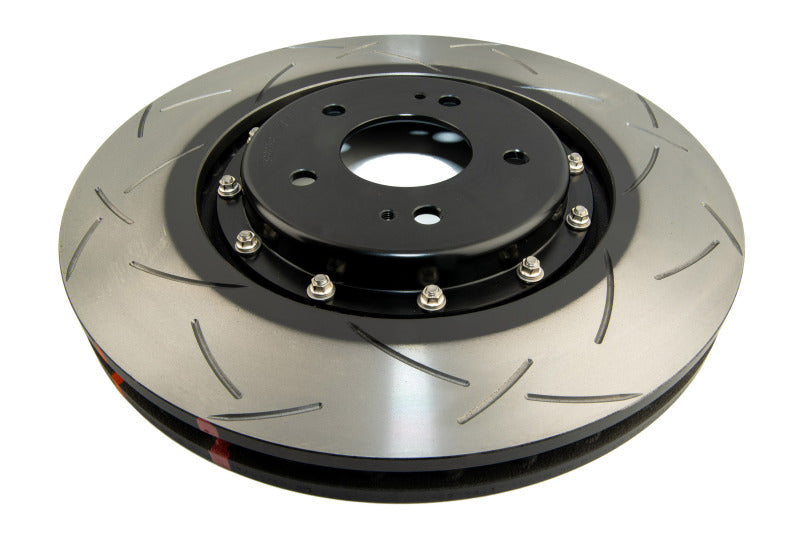

- One 2-piece slotted rotor assembly: High-carbon iron friction ring bolted to lightweight black anodized aluminum hat
- NAS crimp nuts (1/4" UNF) and high-temperature A286 alloy bolts for secure hat-to-ring mounting (torque to 13 Nm)
- Thermo-graphic temperature paint on the outer edge for heat monitoring (green initial, shifts to white at 458°C, orange at 550°C, red at 630°C)
- Corrosion-resistant dual-layer packaging for protection during shipping
- No additional hardware needed for direct bolt-on installation
Detailed Specifications
|
Specification |
Detail |
|
Part Number |
DBA52224V2BLKS |
|
UPC |
9316391426383 |
|
Diameter |
350 mm |
|
Thickness |
32 mm |
|
Minimum Thickness |
30 mm |
|
Overall Height |
44 mm |
|
Center Bore |
69 mm |
|
Bolt Pattern |
5 x M12 x 1.5 studs |
|
Number of Slots |
144 (T3 tri-symmetrical curved design) |
|
Slot Depth/Width |
6.5 mm / 6.5 mm |
|
Vane Count |
48 (Kangaroo Paw patented ventilation) |
|
Disc Material |
XG-150 high-carbon alloyed iron (heat-treated for thermal conductivity and shock resistance) |
|
Hat Material/Finish |
6061-T6 aerospace-grade aluminum / Black anodized |
|
Construction |
Floating 2-piece (replaceable ring design for future service) |
|
Max Operating Temperature |
630°C core (up to 700°C+ with proper bedding) |
|
Part Weight |
9.45 kg (20.8 lbs) per rotor |
Performance Highlights
Built with DBA's proven tech, these rotors pull ahead of standard castings and basic slotted designs through:

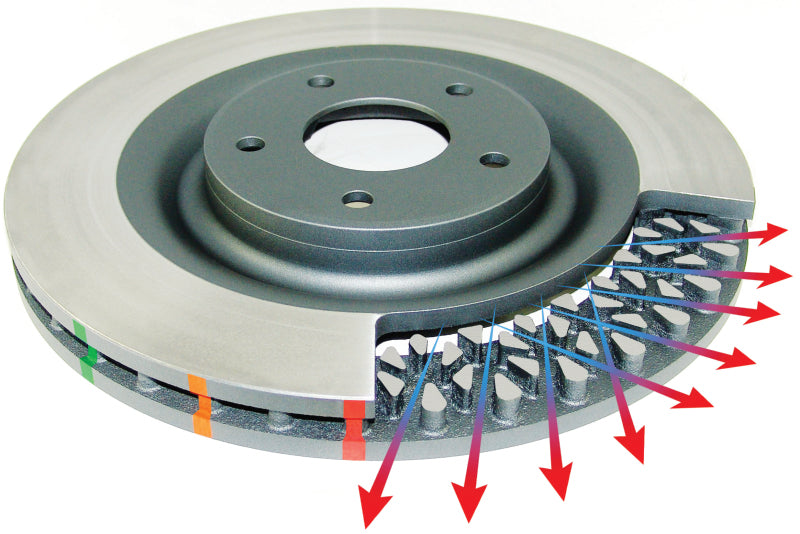

- Kangaroo Paw internal vanes that boost airflow by 20% for faster cooling and less fade on extended sessions
- T3 slots that channel gases and debris away from the pad surface, cutting noise and vibration while maintaining grip across temperatures
- Reduced unsprung weight from the aluminum hat, improving handling response without sacrificing strength
- High-carbon construction treated with TSP process for even wear and extended pad/rotor life under heavy use
Pair with quality pads for best results bed in properly to unlock full potential.
Shipping Details
- Part Weight (Packaged): 25 lbs
- Box Dimensions: 15 in (L) x 15 in (W) x 3 in (H)
