SKU: 6-02-0852-B | UPC: 887753538048

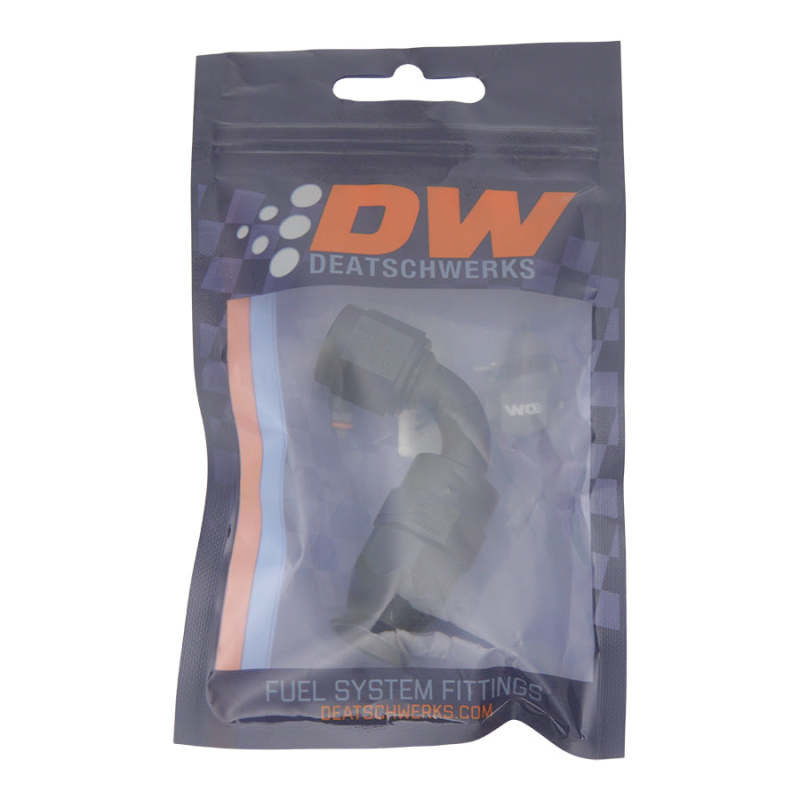

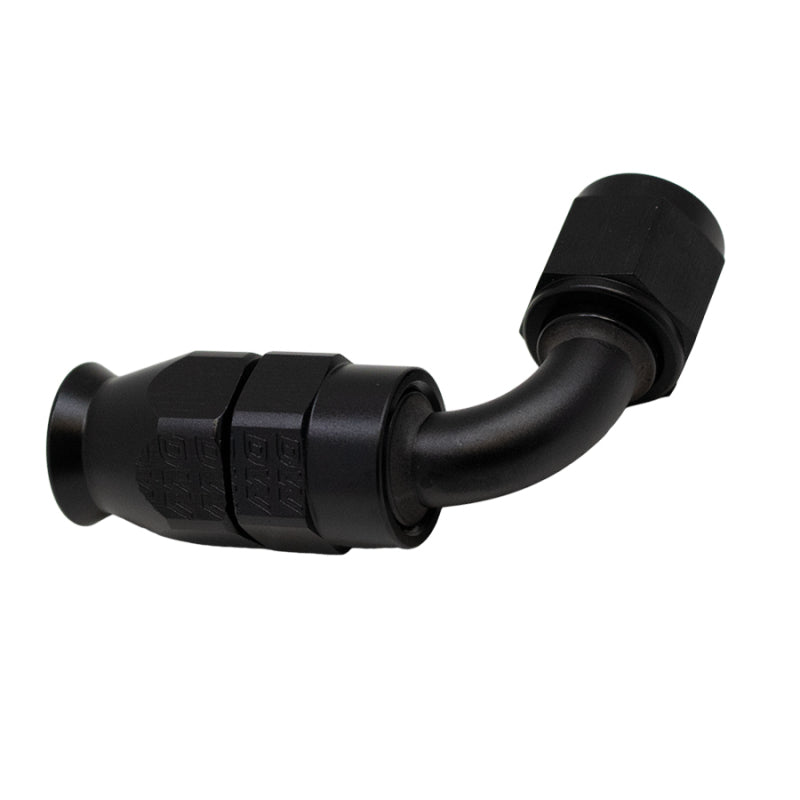

DeatschWerks 6AN Female Swivel 90-Degree Hose End PTFE (Incl 1 Olive Insert) - Anodized Matte Black - Universal Performance Fit
This DeatschWerks 6AN female swivel 90-degree hose end connects PTFE hoses in custom fuel systems for cars trucks and race vehicles. The swivel design routes lines around tight engine bays while the included olive insert secures the hose for leak-free high-pressure operation. Aluminum construction handles E85 gasoline methanol and pump gas in demanding setups.
Key Features
- Swivel 90-Degree Design: Rotates freely to align hose routing without kinks or stress on connections
- PTFE Hose Specific: Matches -6AN inner diameter hoses with pre-installed olive insert for secure crimping
- Anodized Matte Black Finish: Resists corrosion from fuels and heat while matching black engine components
- CNC-Machined Aluminum: 6061-T6 material ensures precise threads and seals up to 1000psi
- High-Flow -6AN Thread: 9/16-18 female swivel supports unrestricted fuel delivery for injectors turbos and nitrous
Product Notes
- One olive insert included additional inserts available as DeatschWerks part 22-00600
- Compatible with all DeatschWerks PTFE liner hoses and standard -6AN lines
- Inspect fittings for cleanliness before assembly to avoid fuel system contamination
Installation Notes
- Professional installation recommended.
- Crimp olive insert using AN-specific hose crimper tool for proper bite into PTFE liner
- Compatible with standard -6AN male nipples thread sealant optional on female side
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Fuel System Upgrades |
Why Choose DeatschWerks?
- Proven fuel system leader with motorsports heritage
- Rigorously tested components for street and track durability
- Precision engineering delivers reliable seals and flow
Frequently Asked Questions
-
Q: What hose size fits this end?
A: Designed for -6AN (3/8 inch) inner diameter PTFE core hoses common in aftermarket fuel systems -
Q: How durable is the matte black finish?
A: Type III hard anodizing on 6061 aluminum withstands fuel exposure heat cycles and road salt -
Q: What warranty applies and install tips?
A: Lifetime limited warranty when used with compatible hoses crimp to manufacturer specs torque to 20-25 ft-lbs
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Protective foam insert in 3 x 3 x 1 inch box
- Weight: 0.1 lbs
