SKU: K5314A-RP | UPC: 841963110470

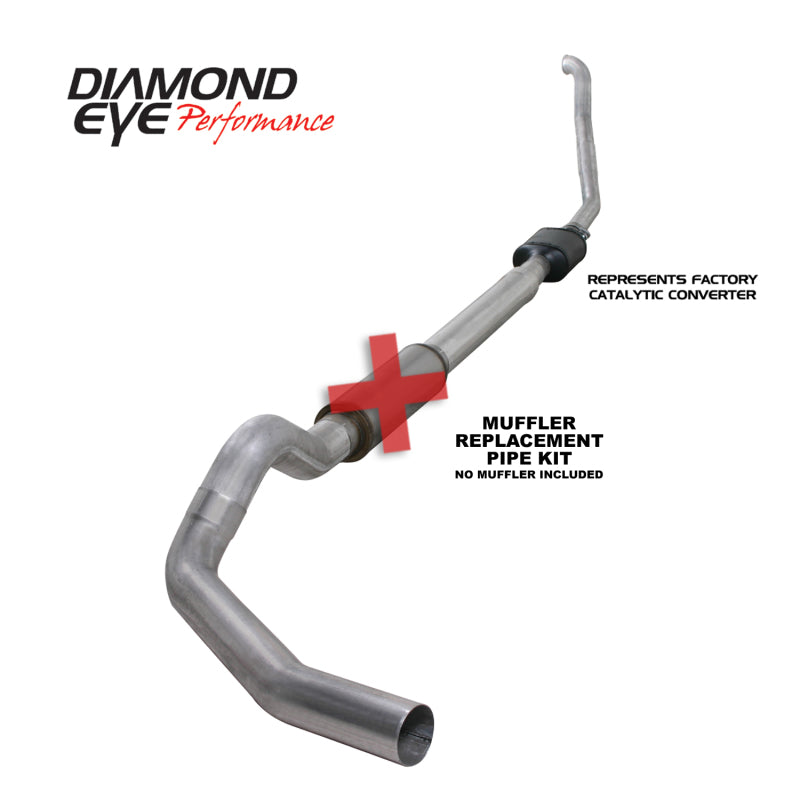

Diamond Eye 5in Turbo Back Muffler Replacement Pipe Single Aluminized 1994-1997 Ford F-250/F-350 7.3L Powerstroke
Transform exhaust performance on your 1994-1997 Ford F-250 or F-350 equipped with the 7.3L Powerstroke diesel using this Diamond Eye 5-inch turbo back muffler replacement pipe. This single aluminized steel pipe replaces the muffler section for unrestricted flow from the turbo to the rear. Gain noticeable improvements in horsepower torque and throttle response while maintaining EPA compliance.
Key Features
- 5-Inch Diameter: Larger tubing delivers higher exhaust volume to reduce backpressure and support engine power output
- Mandrel Bent Aluminized Steel: Smooth continuous bends prevent flow restrictions with corrosion-resistant coating for long-lasting durability
- Direct Bolt-On Design: Engineered for straightforward replacement on OBS Powerstroke trucks without cutting or welding
- Muffler Delete Configuration: Straight-through path eliminates restrictions for aggressive sound and maximum flow efficiency
- Single Exit Setup: Matches factory routing for easy install and clean underbody appearance
Product Notes
- Designed as turbo back replacement from downpipe outlet to tailpipe inlet
- Inspect hangers and clamps during install for secure fit
- Product weight 24 lbs ships in 60 x 12 x 12 inch box
Installation Notes
- Professional installation recommended.
- Reuse factory V-bands and clamps where compatible
- Aligns with stock turbo downpipe and cat-back sections
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1995-1996 | Ford | F-250 | Eddie Bauer |
| 1995-1996 | Ford | F-250 | Special |
| 1994-1996 | Ford | F-250 | XL |
| 1994-1996 | Ford | F-250 | XLT |
| 1997 | Ford | F-350 | Base |
| 1995 | Ford | F-350 | Eddie Bauer |
| 1995-1996 | Ford | F-350 | Special |
| 1994-1997 | Ford | F-350 | XL |
| 1994-1997 | Ford | F-350 | XLT |
Why Choose Diamond Eye?
- Advanced CNC mandrel bending machines produce precise tubing from 3/8-inch to 5-inch in aluminized steel
- Over 60,000 sq ft manufacturing facility with dedicated R&D center for performance testing
- Experienced team delivers quality exhaust components with rapid warehouse shipping
Frequently Asked Questions
-
Q: Will this fit my 1996 Ford F-350 XL 7.3L Powerstroke?
A: Yes it bolts directly to 1994-1997 F-350 XL models with 7.3L diesel ensuring perfect alignment from turbo outlet -
Q: What material is used in construction?
A: Heavy-duty 16-gauge aluminized steel provides rust resistance and strength for high-heat diesel exhaust -
Q: What warranty coverage applies?
A: Backed by Diamond Eye limited lifetime warranty on manufacturing defects contact support for details
Shipping & Handling
- Method: Ground shipping via UPS or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Securely boxed 60 x 12 x 12 inches
- Weight: 24 lbs
