SKU: BC300A | UPC: 841963119879
Diamond Eye 3 Inch Band Clamp with Metric Aluminum Hardware BC300A for 1999-2023 Ram Cummins Ford Powerstroke GM Duramax

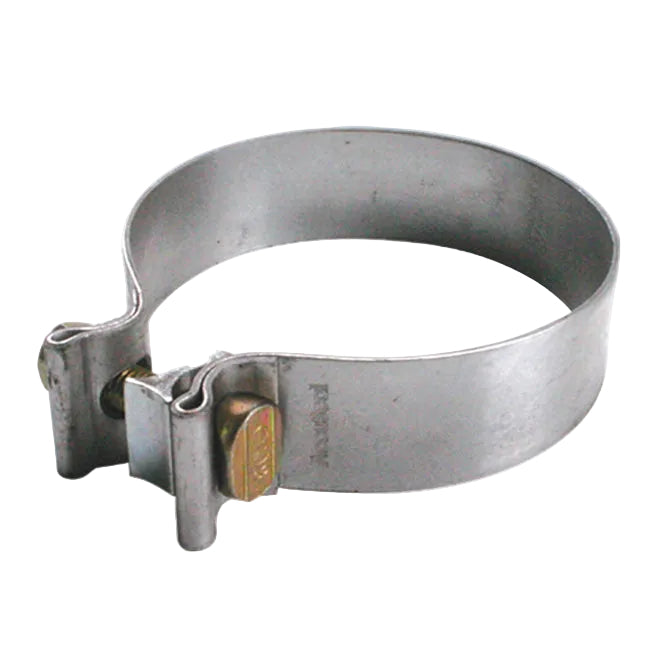

The Diamond Eye BC300A band clamp secures 3-inch exhaust connections on diesel trucks and performance vehicles including Ram Cummins Ford Powerstroke and GM Duramax models. It fits 3 inch OD tubing in custom fabrication and replacement exhaust systems. Even pressure distribution creates leak-free joints that withstand vibration heat and road abuse for reliable performance.
Key Features
- 3 Inch Clamp Size: Matches standard 3 inch exhaust tubing for direct fit without adjustments in most performance applications
- Metric Aluminum Hardware: Corrosion-resistant bolts and T-bolt design prevent seizing and allow precise torquing with common tools
- Aluminized Steel Band: High-strength material endures exhaust temperatures up to 1200°F with rust protection
- 360-Degree Clamping: Uniform pressure distribution eliminates hot spots and ensures airtight seals on butt joints or flanges
- Lightweight Design: Weighs only 0.35 lbs to reduce overall exhaust system mass without sacrificing hold
Product Notes
- Inspect pipe ends for burrs before clamping to achieve best seal
- Apply anti-seize compound to hardware threads during assembly
- Packaged in protective sleeve to prevent scratches during transit
Installation Notes
- Professional installation recommended.
- Torque hardware to 12-15 ft-lbs using metric socket set
- Compatible with V-band flanges and plain butt joints
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003-2009 | Dodge | Ram 2500 | 5.9L Cummins |
| 2003-2009 | Dodge | Ram 3500 | 5.9L Cummins |
| 2010-2023 | Ram | 2500 | 6.7L Cummins |
| 2010-2023 | Ram | 3500 | 6.7L Cummins |
| 1999-2007 | Ford | F-250 Super Duty | 7.3L Powerstroke |
| 1999-2007 | Ford | F-350 Super Duty | 7.3L Powerstroke |
| 2008-2023 | Ford | F-250 Super Duty | 6.4L 6.7L Powerstroke |
| 2008-2023 | Ford | F-350 Super Duty | 6.4L 6.7L Powerstroke |
| 2001-2023 | Chevrolet | Silverado 2500HD | Duramax |
| 2001-2023 | GMC | Sierra 2500HD | Duramax |
Why Choose Diamond Eye?
- Built in 60000 sq ft facility with CNC mandrel benders for precise components
- Rapid shipping from large warehouse inventory for quick order fulfillment
- Engineered by industry veterans in dedicated R&.D center for reliable results
Frequently Asked Questions
-
Q: Does this clamp fit 3 inch OD exhaust pipes on Cummins trucks?
A: Yes the BC300A fits 3 inch outer diameter pipes standard on Diamond Eye exhaust kits for 2003-2023 Ram Cummins models -
Q: What material is the hardware?
A: Metric aluminum hardware provides lightweight strength and resists corrosion in exhaust environments -
Q: What is the torque spec for installation?
A: Tighten to 12-15 ft-lbs with a calibrated torque wrench for secure hold without damaging components
Shipping &. Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: 6 x 4 x 2 inch box with protective padding
- Weight: 0.35 lbs
