SKU: CRS-6243H3DL19

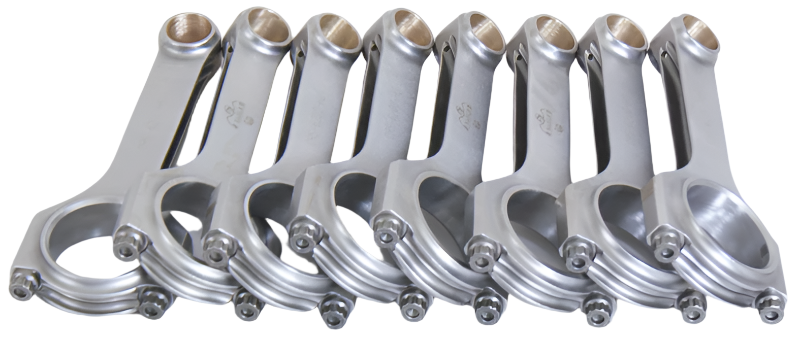

6.243" 4340 H-Beam, Chrysler Late Model Hemi, 7/16" Arp L19 Bolts EAGLE Rods Dodge 5.7/6.1L Hemi 6.2
Important Torque to 79 ft-lbs, ARP moly lube ONLY!
Highlights:
- bolts: 7/16" ARP L19
- material: forged 4340 steel
- center to center length: 6.243"
- pin size: 0.927"
- pin end width: 0.932"
- rod journal: 2.126"
- housing bore: 2.252"
- big end width: 0.932"
- typical weight: 640g
- bushed for full-floating piston pin
- recommended bearing: Clevite CB1808A, King CR8032SM
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP L19 bolts for the ultimate in power-handling capability. Recommended for competition use.
Connecting Rods
Performance connecting rods are a foundational upgrade for any engine build that will push beyond factory power limits. OEM connecting rods are designed for stock power levels and cast iron construction that may not handle the combination of high RPM, forced induction, and increased cylinder pressure present in a serious performance build. H-beam and I-beam forged steel rods provide the tensile strength and fatigue resistance needed to survive those conditions reliably.Popular UpgradesH-beam connecting rods forged from 4340 chromoly steel are the most popular choice for turbo and supercharged street builds targeting 500 to 1,000 horsepower. I-beam rods are preferred in applications where compressive loads exceed tensile loads, such as naturally aspirated high-RPM engines and certain diesel applications. Lightweight titanium rods are used in maximum-effort race engines where rotating mass reduction at extreme RPM is the priority.What is the difference between H-beam and I-beam connec...
