SKU: S90-4-20-035 | UPC: 803050435811 | MPN: S90-4-20-035

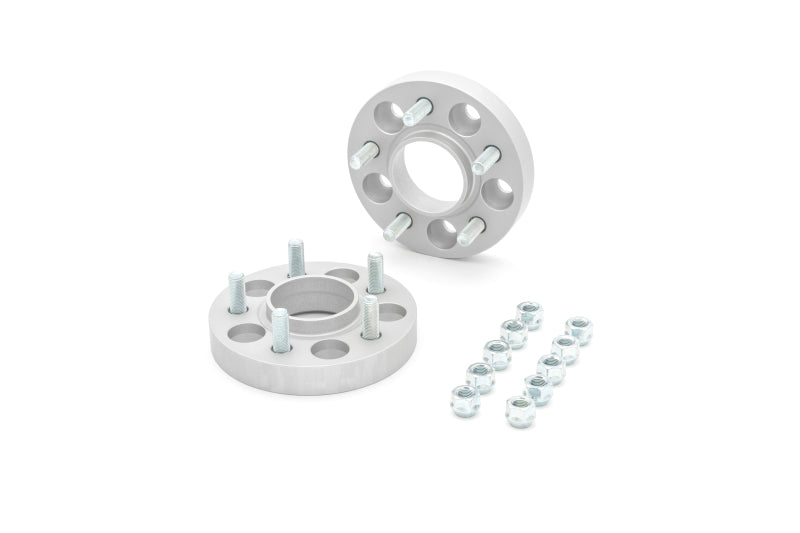

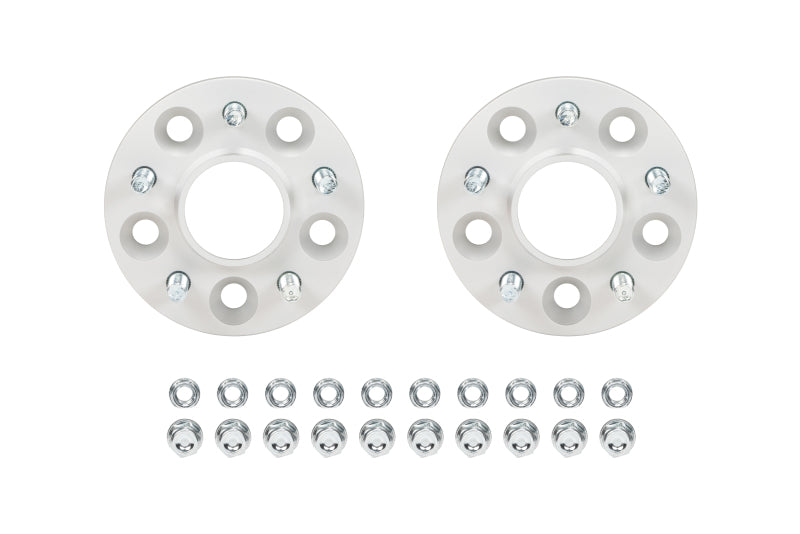

Eibach Pro-Spacer 2016-2017 Chevy Camaro V6 / 2.0L Turbo / SS - 20mm Spacer
Eibach Pro-Spacer S90-4-20-035 delivers hub-centric 20mm wheel spacers engineered for 2016-2017 Chevrolet Camaro V6 3.6L, 2.0L Turbo, and SS 6.2L models. These precision spacers widen track width by 40mm total for sharper cornering, improved stability, and a flush wheel fitment. Bolt pattern 5x120 with M14x1.5 threads ensures direct hub-centric mounting on 66.9mm bore hubs.
Key Features
- Hub-Centric Fitment: Matches OEM hub bore exactly to eliminate vibrations and center wheels perfectly without adapters or rings.
- CNC-Machined Aluminum: Billet high-tensile 6061-T6 alloy construction resists corrosion, cuts unsprung weight, and handles high loads for track or street use.
- 20mm Thickness: Increases track by 1.57 inches per side for enhanced grip, reduced body roll, and aggressive wheel stance on Camaro.
- TÜV Certified: Meets German road safety standards with ABE approval for proven reliability and quality control.
- Pair Included: Complete set of two spacers with exact OEM stud compatibility for straightforward front or rear application.
Product Notes
- Spacers can only be used with wheels that have cut-outs (facing the hub) to clear the stock studs. Original stud length (i.e. 35mm) minus spacer-thickness (20mm) = 15mm excess stud length. The cut-out should have a depth of 16mm minimum.
- Clean hub and spacer mating surfaces before install to prevent imbalance.
- Ships standard ground; weight 2.0 lbs, box dimensions 9 x 7 x 2 inches.
Installation Notes
- Professional installation recommended.
- Verify wheel cut-out depth exceeds excess stud length by 1mm for safe clearance.
- Uses OEM studs; longer studs or wheel bolts required only if aftermarket wheels lack sufficient cut-outs. Torque to 129 ft-lbs.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2010-2014,2017-2018,2020,2022 | Chevrolet | Camaro | LS |
| 2010-2014,2016-2018,2020,2022 | Chevrolet | Camaro | LT |
| 2022 | Chevrolet | Camaro | LT1 |
| 2010-2018,2020,2022 | Chevrolet | Camaro | SS |
| 2012-2015,2017-2018,2020,2022 | Chevrolet | Camaro | ZL1 |
Why Choose Eibach?
- Trusted suspension leader since 1951 with motorsport pedigree in NASCAR and Formula Drift.
- German engineering from Oberursel factory ensures micron-level precision.
- Backed by limited lifetime warranty against manufacturing defects.
Frequently Asked Questions
-
Q: Will S90-4-20-035 fit my 2016 Camaro SS with aftermarket wheels?
A: Yes, fits all listed Camaro models if wheels have 5x120 pattern and hub cut-outs deeper than excess stud length (15mm+1mm for 20mm spacer). -
Q: What material are Eibach Pro-Spacers made from?
A: CNC-machined from 6061-T6 aircraft-grade aluminum alloy for maximum strength-to-weight ratio and corrosion resistance. -
Q: Is professional installation required and what's the warranty?
A: Professional install recommended for torque specs; covered by Eibach lifetime warranty against defects when installed correctly.
