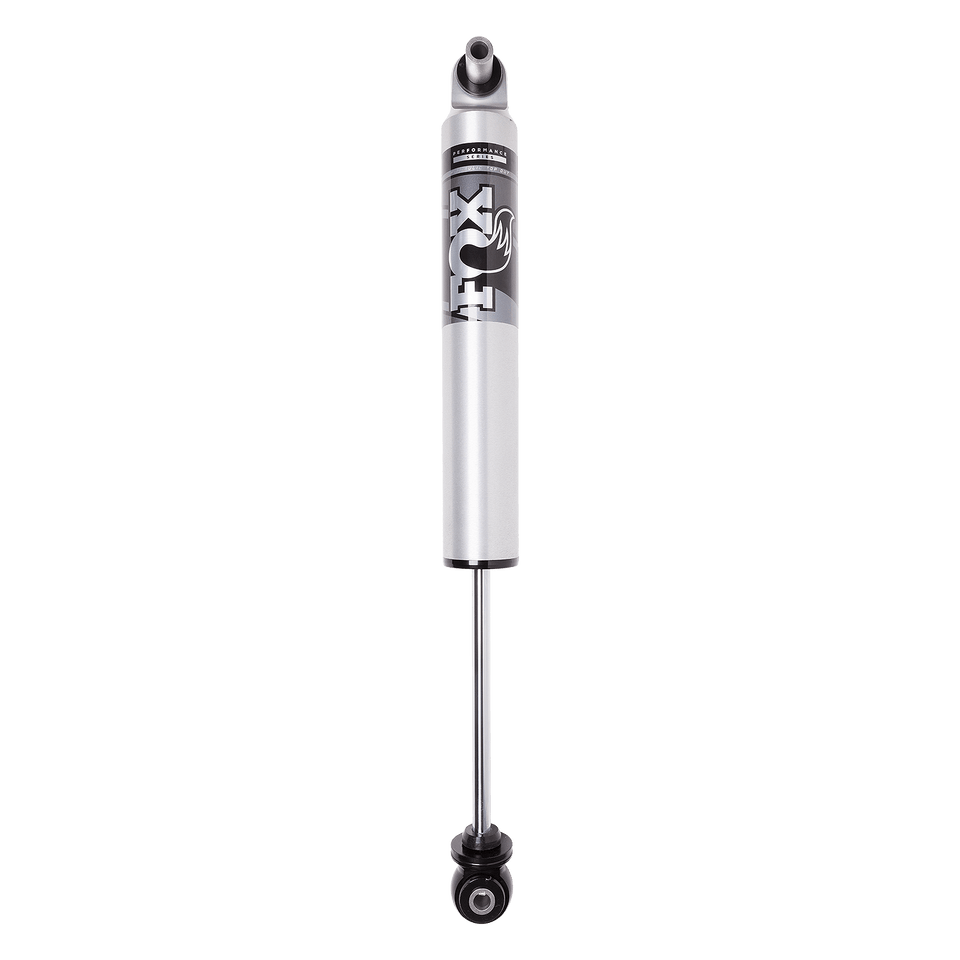

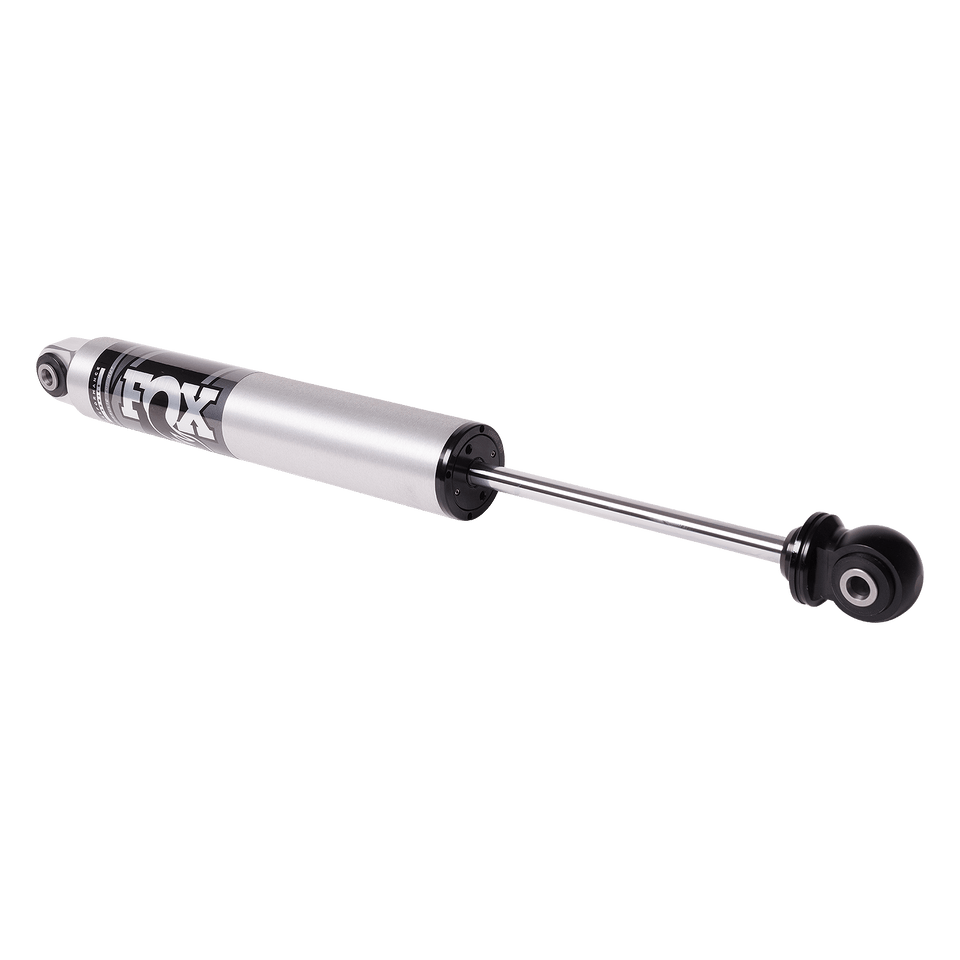

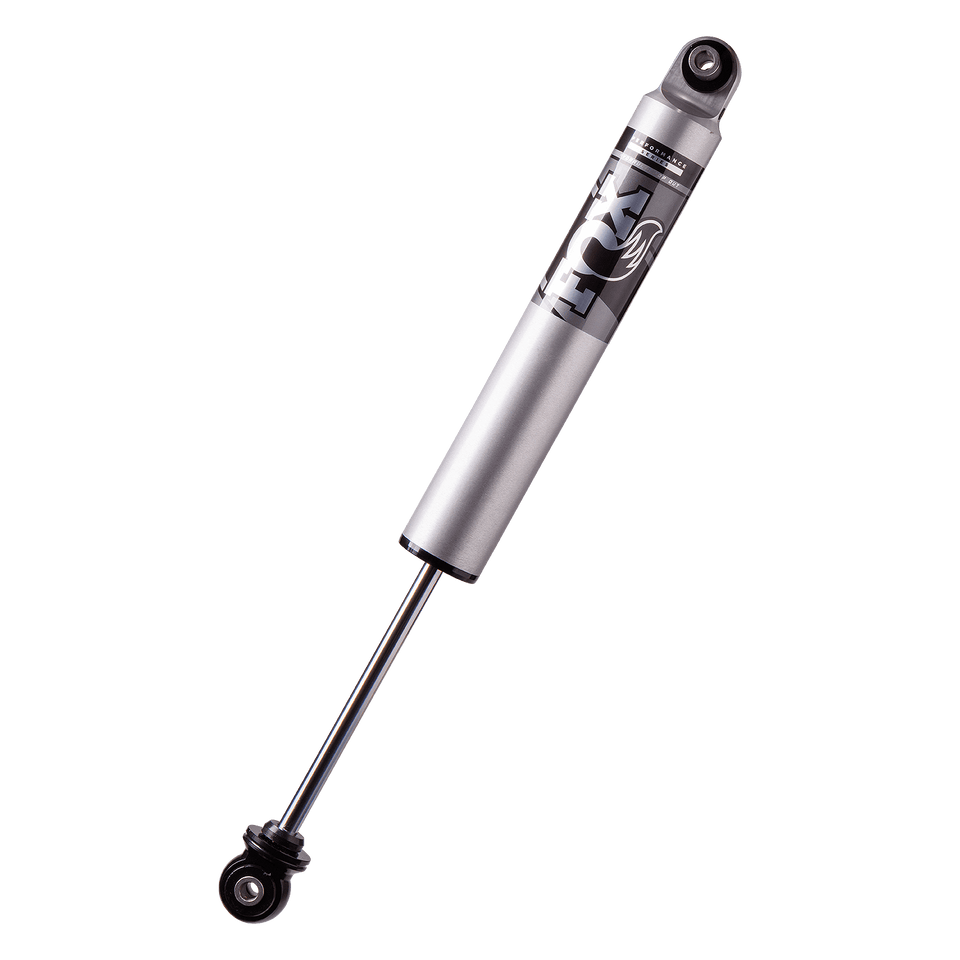

Fox 2017+ Ford F250 Super Duty 2-3.5in Lift Front 2.5 Performance Series Smooth Body IFP HTO Shock

SKU: 987-24-002

PERFORMANCE SERIES 2.5 SMOOTH BODY IFP HTO SHOCK

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.

Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.

Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

PART NUMBER

987-24-002

FEATURES

2.5” IMPACT EXTRUDED 6061-T6 ALUMINUM SHOCK BODY

TYPE II CLEAR-ANODIZED BODY PLATING

HIGH-FLOW VELOCITY-SENSITIVE DAMPING

5/8” HARD CHROME SHAFT

INTERNAL FLOATING PISTON (IFP)

HYDRAULIC TOP OUT (HTO) PISTON

TRAVEL

8.19

FRONT LIFT HEIGHT

2-3.5

EXTENDED LENGTH

23.99

COMPRESSED LENGTH

15.8

TOP MOUNT

STEM

BOTTOM MOUNT

EYELET

FITMENT NOTES

LIFT: 2-3.5 INCHES
