GSC P-D Hyundai G4KF Theta Beehive Valve Spring and Titanium Retainer Kit 2010-2014 Hyundai Genesis Coupe 2.0T

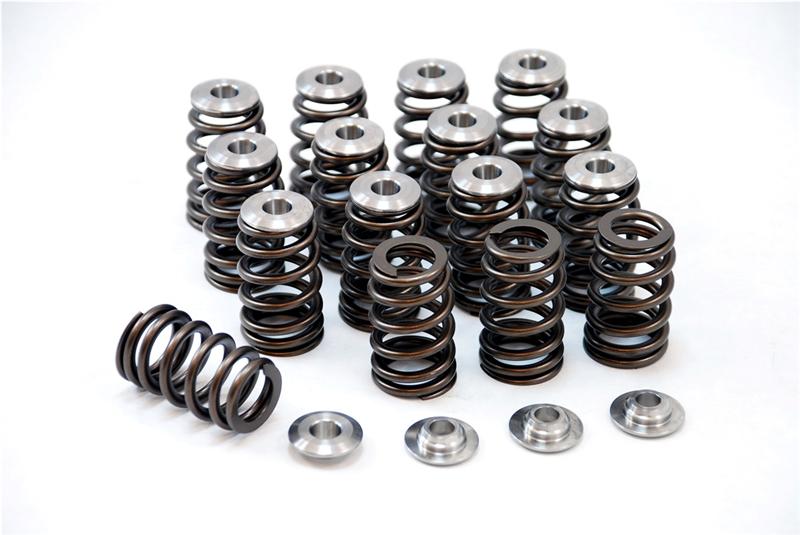

This complete kit includes 16 beehive valve springs and 16 titanium retainers designed specifically for the Hyundai G4KF Theta 2.0T engine. It fits all 2010-2014 Hyundai Genesis Coupe 2.0T models and delivers precise valve control at high RPM to prevent float. Engine builders choose this kit for its lightweight construction that supports revs up to 10500 RPM while maintaining durability under boost.

Key Features

  • Beehive Spring Design: Progressive rate reduces valvetrain mass by 40 percent over dual springs lowers harmonics and enables higher RPM operation
  • Titanium Retainers: Ti6Al4V alloy construction weighs only 10 grams each saves 320 grams total over stock for quicker valve response
  • Precise Pressures: 158 lbs seat pressure at 1.650 inches open to 440 lbs at 0.950 inches with 85.2 lbs per inch rate holds valves tight under extreme conditions
  • Extended Lift Capacity: Supports up to 13.0mm lift cams without coil bind at 1.060 inches perfect for turbo upgrades
  • Superfinish Surface: Chrome silicon steel springs with EDM cut ends ensure zero stress points and consistent performance

Product Notes

  • Direct replacement for stock springs and retainers no valvetrain geometry changes required
  • Kit arrives complete with all hardware uses OEM locks and seals
  • Packaged in protective foam inserts for damage-free delivery

Installation Notes

  • Professional installation recommended.
  • Use a quality spring compressor tool to avoid damage during removal and install
  • Compatible with stock valve locks keepers and stem seals

This Part Fits

Year Make Model Submodel
2010-2014 Hyundai Genesis Coupe 2.0T
2010-2014 Hyundai Genesis Coupe 2.0T Premium
2010-2014 Hyundai Genesis Coupe 2.0T R-Spec
2010 Hyundai Genesis Coupe 2.0T Track

Why Choose GSC Power-Division?

  • Proven in drag racing and circuit events worldwide with thousands of installations
  • Manufactured in the USA using aerospace-grade materials for consistent quality
  • Engineered and dyno-tested for the G4KF engine to deliver reliable power gains

Frequently Asked Questions

  • Q: Will this kit fit all 2010-2014 Genesis Coupe 2.0T trims?
    A: Yes it bolts directly into every 2010-2014 Hyundai Genesis Coupe 2.0T including Premium R-Spec and Track editions with the G4KF engine no modifications needed
  • Q: What materials are used in the springs and retainers?
    A: Springs are premium chrome silicon steel retainers are high-strength Ti6Al4V titanium both treated for maximum fatigue resistance
  • Q: What is the warranty and RPM limit?
    A: Lifetime warranty against spring failure when used within 10500 RPM limit proper installation required
