SKU: K53132B

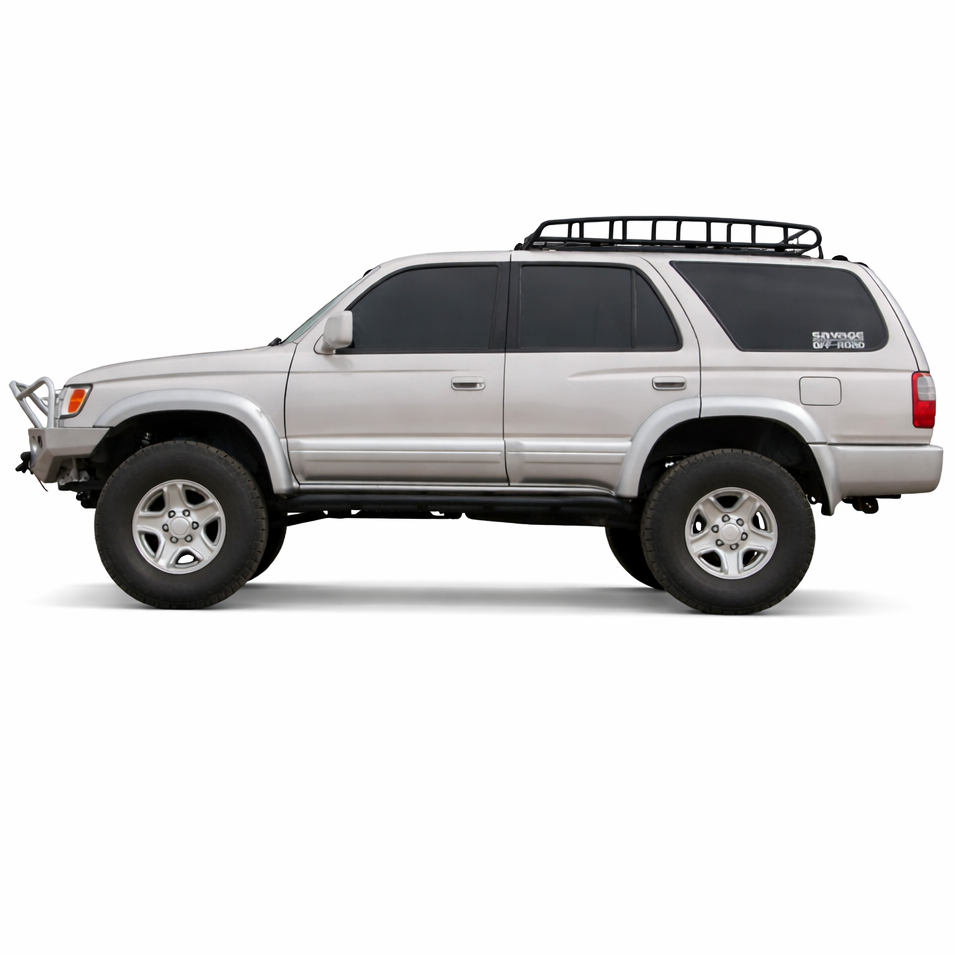

ICON Vehicle Dynamics 0-3" Stage 2 Suspension System with Billet Upper Control Arms – 1996-2002 Toyota 4Runner
The ICON Vehicle Dynamics Stage 2 Suspension System is a high-performance lift kit engineered for the 1996-2002 Toyota 4Runner. This complete system provides an adjustable 0-3" front lift while significantly improving on-road handling, ride quality, and off-road capability. It includes vehicle-specific tuned 2.5" VS Series coilovers with extended travel, ICON-engineered coil springs, billet aluminum upper control arms with Delta Joint, and 2.0" Aluminum Series rear shocks. The system also includes ICON-engineered 1" lift rear coil springs for enhanced rear performance. Designed with maximum wheel travel and damping ability in mind, the Stage 2 kit delivers outstanding vehicle control and comfort both on and off-road.
Key Features
- 0-3" Adjustable Front Lift – Allows use of larger wheels and tires while maintaining proper geometry
- 2.5" VS Series Coilovers – Vehicle-specific tuning with extended travel for superior damping and control
- Billet Aluminum Upper Control Arms – Corrected front-end geometry with increased camber and caster adjustment
- Delta Joint – Serviceable and rebuildable ball joints allow full bump and droop travel without bind
- 2.0" Aluminum Series Rear Shocks – Vehicle-specific valving for balanced front-to-rear performance
- 1" Lift Rear Coil Springs – ICON-engineered springs improve rear ride quality and performance
| Spec | Detail |
|---|---|
| Part Number | K53132B |
| Brand | ICON Vehicle Dynamics |
| Type | Stage 2 Suspension System with Billet Upper Control Arms |
| Compatibility | 1996-2002 Toyota 4Runner |
| Lift Height | 0-3 inches (front, adjustable) + 1 inch (rear) |
| Country of Origin | United States |
| Warranty | ICON Limited Lifetime Warranty |
Whats Included
- Front 2.5" VS Series Coilovers with coil springs (pair)
- Billet Aluminum Upper Control Arms with Delta Joint (pair)
- ICON-engineered 1" lift rear coil springs
- 2.0" Aluminum Series Rear Shocks (pair)
- All necessary mounting hardware and instructions
Product Notes
- Designed specifically for the 1996-2002 Toyota 4Runner
- Improves wheel travel, damping, and overall vehicle control on and off-road
- Fully serviceable shocks allow for rebuilds or re-valving as needed
Installation Notes
- Bolt-on system with some minor bracket work possible
- Estimated time: 6–10 hours
- Professional installation and wheel alignment required after installation
This Part Fits
| Year Range | Make | Model | Notes |
|---|---|---|---|
| 1996-2002 | Toyota | 4Runner | All models |
Why Choose ICON Vehicle Dynamics Stage 2 Systems?
- Complete suspension solution with adjustable ride height and advanced damping
- Billet aluminum components for maximum strength and reduced weight
- Engineered and tested in the USA for superior on- and off-road performance
Frequently Asked Questions
-
Q: Does this kit fit the 2000 Toyota 4Runner?
A: Yes, compatible with all 1996-2002 Toyota 4Runner models. -
Q: What is the maximum lift height?
A: Up to 3 inches of adjustable front lift and 1 inch of rear lift. -
Q: Is professional installation required?
A: Yes, professional installation and a wheel alignment are highly recommended for safety and proper geometry.
Shipping & Handling
- Method: Ground UPS or FedEx (oversize shipping may apply)
- Availability: In stock – ships same or next business day
- Packaging: Official ICON Vehicle Dynamics retail packaging
