SKU: 14400-4 | UPC: 807298009940

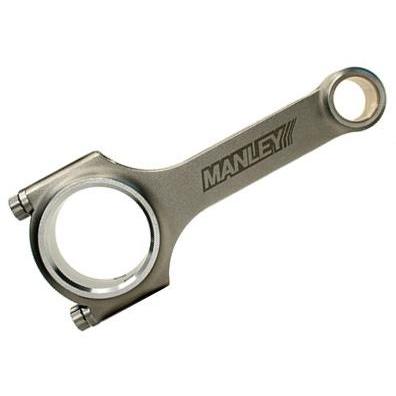

Manley 93.5-99 Mitsubishi Eclipse GST GSX / 93.5-99 Eagle Talon TSi 2.0 (7 bolt 4G63 4G63T) / 03-06 Mitsubishi Lancer Evolution Pro Series I-Beam Connecting Rods
Manley Pro Series I-Beam connecting rods deliver reliable strength for 2.0L 7-bolt 4G63 engines in 1995-1999 Mitsubishi Eclipse GST GSX Eagle Talon TSi Plymouth Laser RS and 2003-2006 Lancer Evolution models. This set of 4 rods handles high boost and RPM in DSM and Evo performance builds. Precision design maintains consistent power under extreme conditions.
Key Features
- Forged 4340 Steel: High-tensile vacuum degassed alloy withstands extreme loads and heat in turbocharged 4G63 applications
- ARP 2000 Bolts: 3/8-inch cap screws rated for 260000 psi tensile strength lock rod assembly securely
- Precision Machining: Center-to-center length 143.97mm big end bore 2.165in small end 0.906in weight matched to 1 gram tolerance
- NHRA Certification: Meets requirements for Stock and Super Stock classes in Pro Series I-Beam setups
- Weight Options: Offered as Tour Lites Lightweight Standard or Heavy to suit 88mm stroke 4G63 engines
Product Notes
- Set of 4 rods includes ARP bolts pistons pins and bearings sold separately
- Designed for stock 88mm stroke verify crank journal 2.000in compatibility
- Ships in protective sleeve inside sturdy box to prevent damage
Installation Notes
- Professional installation recommended.
- Machine shop required to resize hone big ends and balance assembly
- Compatible with OEM or aftermarket 22mm wrist pin pistons ARP bolts pre-installed
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1993-1997 | Eagle | Talon | TSi |
| 1993-1994 | Plymouth | Laser | RS |
| 1995-1998 | Mitsubishi | Eclipse | GST |
| 1995-1998 | Mitsubishi | Eclipse | GSX |
| 1996-1998 | Mitsubishi | Eclipse | Spyder GST |
| 2003-2006 | Mitsubishi | Lancer | Evolution |
Why Choose Manley?
- Over 40 years building engine components for racing and street
- Hand-assembled in USA with rigorous quality inspections
- Proven design trusted in NHRA drag racing and DSM Evo competition
Frequently Asked Questions
-
Q: Will these rods fit 1990-1994 DSM 6-bolt engines?
A: No these rods fit only 7-bolt 4G63 cranks from late 1993 onward verify your block and crank before purchase -
Q: What material and finish do these rods have?
A: Forged 4340 steel alloy with rifle drilled big ends and fully machined finishes for oiling and balance -
Q: What warranty coverage is provided?
A: Limited warranty against manufacturing defects when installed by certified shop includes rod breakage from material flaws
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective box 23.25 x 7 x 2.75 inches
- Weight: 4.850 lbs
