Sku: Moton-M 505 187SD
1WAY adjustable coil overs in rebound and ride height, incl. springs and top mounts

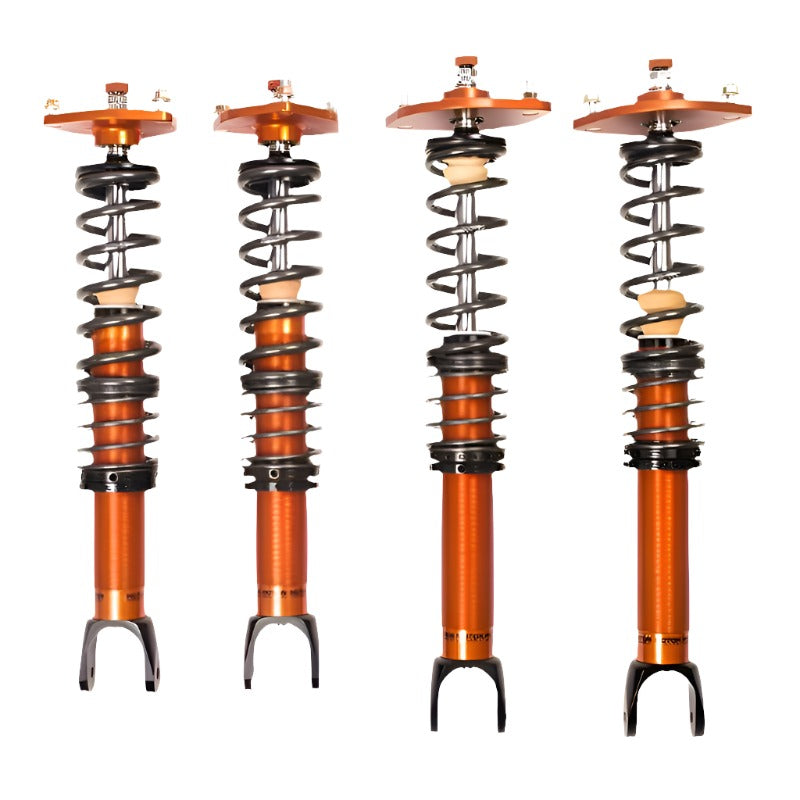

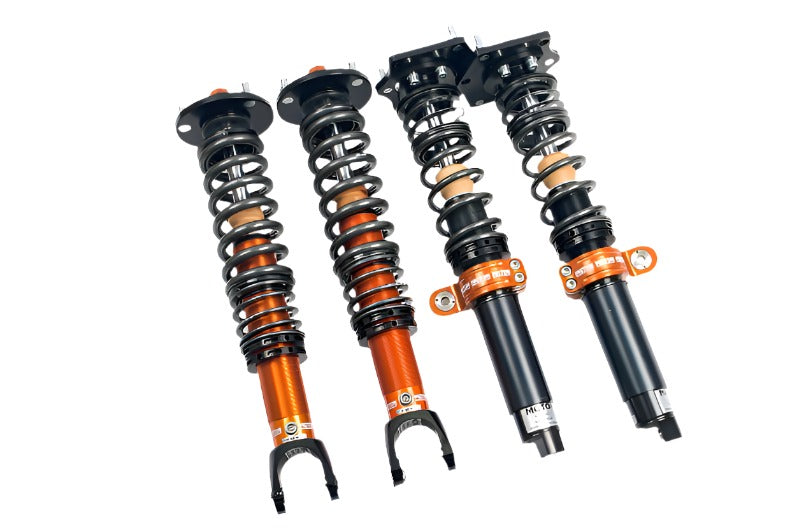

Set of MONOTUBE coil overs, NON INVERTED, 1-way adjustable for both rebound and ride height. Front and rear dampers utilize a coil over design. Includes, where applicable, camber adjustable front Top Mounts and solid rear Top Mounts.
Are you using your vehicle on the track? Or perhaps you’re after a combination of using your car for CLUBRACING and seeking the ideal road balance for daily driving. In that case, the MOTON 1-WAY SUSPENSION is the perfect choice for you. Maximize grip by controlling rebound and ride height of your car. MOTON has an elevated top guide with a helper piston to reduce friction, resulting in reduced internal wear within this suspension. Ensuring stable and consistent damping performance. This set of NON-INVERTED suspension also includes, where applicable, camber-adjustable front Top Mounts and solid rear Top Mounts. The camber adjustment will offer you more wheel adjustment and allow this geometry to be altered to transform front -end grip. In this set front and rear dampers utilize a coilover design. By choosing this design you prioritize adjustability and the performance of your car. Coilovers which will offer more adjustability for both damping settings and ride height, and typically provide more consistent and predictable handling characteristics. The initial setup for setting and spring rates is rooted in our extensive development and testing process. Individual preferences can easily be fine-tuned by making adjustments to the rebound knob or altering the ride height. You can adjust the rebound, means you can control the return to extension of your dampers, enabling you to attain the ideal road balance tailored to your specific requirements. With 12 distinct positions to choose from, each adjustment delivers distinct feedback and a unique driving experience. MOTON Suspension is a monotube design. This is a benefit for you because these dampers offer a large piston to control the adjustability of rebound damping. There is no aeration or foaming in monotube dampers, this will result in a more responsive valving. MOTON high pressure dampers offers additional resistance, based on the driving conditions. Springs are included.
Benefits
- Custom setup for your goals
- Easily adjustable with one knob
- Track proven system
- Wide range of springs can be used
- Rebuildable/Revalveable
- Monotube dampers offer a large piston to control the adjustability of rebound damping
- Non inverted
- These dampers can adjust in ride height and rebound (return to extension)
- Front and rear dampers utilize a coilover design.
Features
- 15 click rebound control

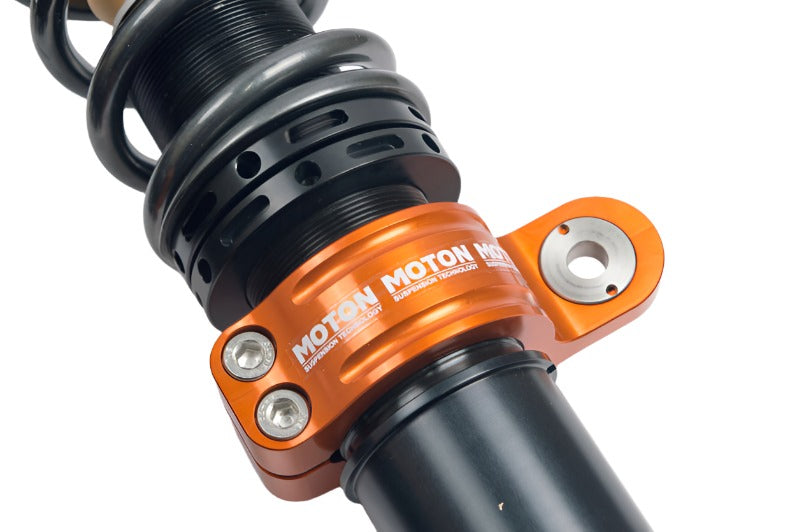

- Height adjustable
- Non reservoir setup
- 22mm shaft diameter
- Large main piston for quick response and wide adjustment range

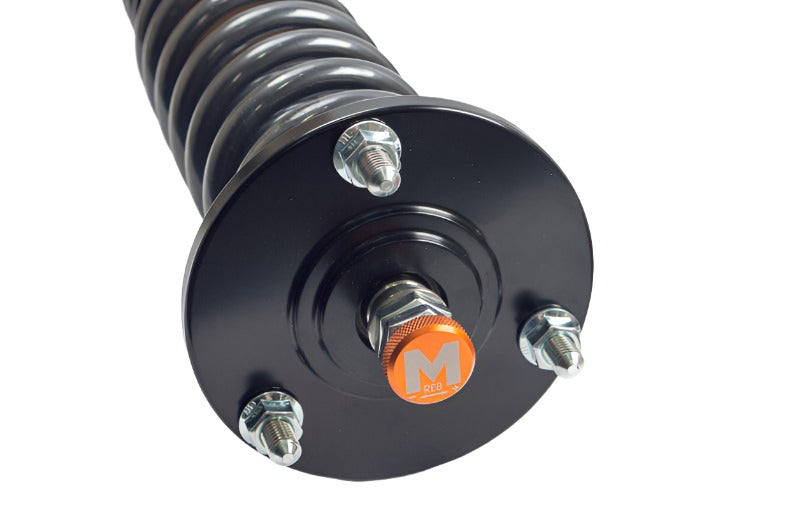

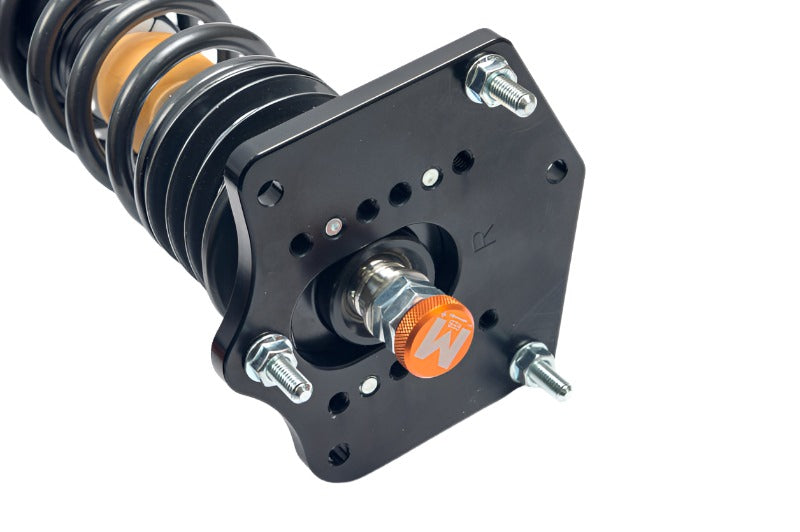

- Top camber mounts supplied where possible/available
- All hardware included for installation
- High tensile helper and main springs are available as an option
- DDP (double digressive pistons) are available as an option
- Double Digressive Pistons are recommended for use on the non-driven wheels
- 4WD/FWD vehicles: DDP for both rear axle struts/shocks
- RWD vehicles: DDP for both front axle struts/shocks
Kit Includes: 4 Shock absorbers
Compatibility
2021+ BMW M3 G80 Xdrive
2021+ BMW M4 G82 Xdrive
This Part Fits:
| Year |
Make |
Model |
Submodel |
| 2022-2023 |
BMW |
M3 |
Competition xDrive |
| 2021-2023 |
BMW |
M4 |
Competition |
