SKU: 20-1000-1016S

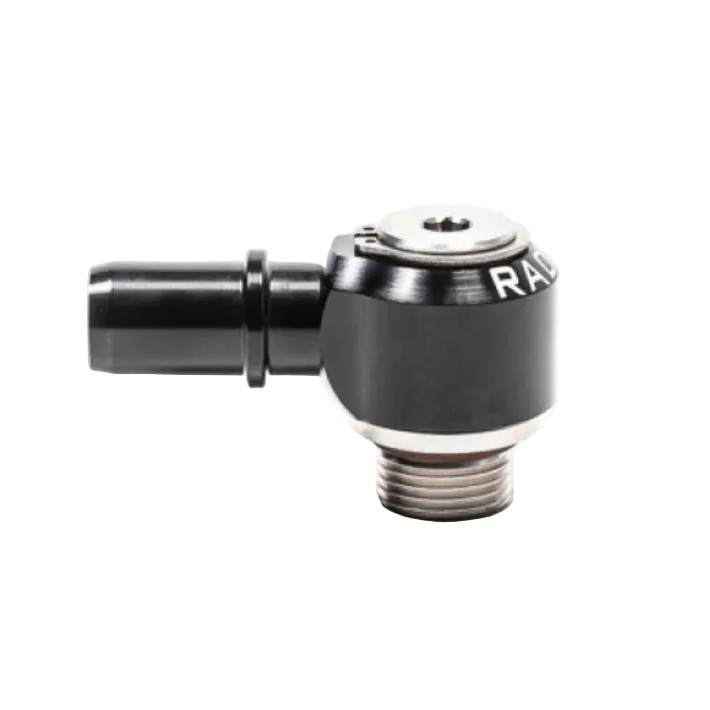

Radium Engineering 8AN ORB Swivel Banjo to 16mm SAE Male Fitting
The Radium 20-1000-1016S Swivel Banjo Fitting is the best high-flow solution for connecting 8AN lines to 16mm SAE male ports in fuel, oil, or coolant systems. This premium aluminum fitting features full 360-degree swivel for easy installation, anodized finish for corrosion resistance, and Viton O-rings for leak-free sealing in demanding applications.
Key Features
- Full Swivel Design: 360-degree rotation simplifies hose routing in tight spaces
- High-Flow Banjo: Large internal passage maximizes flow with minimal restriction
- Premium Sealing: Viton O-rings ensure reliable seal under pressure and temperature extremes
- Durable Construction: CNC machined aluminum with black anodized finish for longevity
Specifications
| Specification | Detail |
|---|---|
| Part Number | 20-1000-1016S |
| Inlet | 8AN ORB (O-Ring Boss) |
| Outlet | 16mm SAE Male |
| Banjo Style | Swivel Banjo |
| Material | Aluminum |
| Finish | Black Anodized |
| O-Rings | Viton |
| Country of Origin | United States |
| Warranty | Limited Lifetime |
Product Notes
- Single fitting – commonly used for fuel rail, regulator, or oil cooler connections
Installation Notes
- Estimated time: 10-20 minutes, easy difficulty, requires proper torque on banjo bolt
- Use with compatible banjo bolt and crush washers for leak-free seal
This Part Fits
| Application | Notes |
|---|---|
| Universal | 8AN Systems w/ 16mm SAE Male Ports |
| Common Uses | Fuel Rails, Regulators, Oil Coolers, Catch Cans |
Why Choose Radium Engineering?
- Leader in fuel system components with innovative designs for performance applications
- Premium USA-made fittings with superior flow and sealing characteristics
- Limited lifetime warranty ensures long-term reliability
Frequently Asked Questions
-
Q: Does it include banjo bolt?
A: No, fitting only – compatible banjo bolt and washers sold separately. -
Q: Is it full flow?
A: Yes, large internal passage designed for maximum flow with minimal restriction. -
Q: What O-ring material?
A: Viton for excellent chemical and temperature resistance. -
Q: Can it be used for coolant?
A: Yes, compatible with fuel, oil, and coolant applications.
Shipping & Handling
- Method: UPS/FedEx Ground
- Availability: In stock, ships same or next business day
- Packaging: Official Radium retail packaging
