SKU: SNF-60108 | UPC: 653374981293

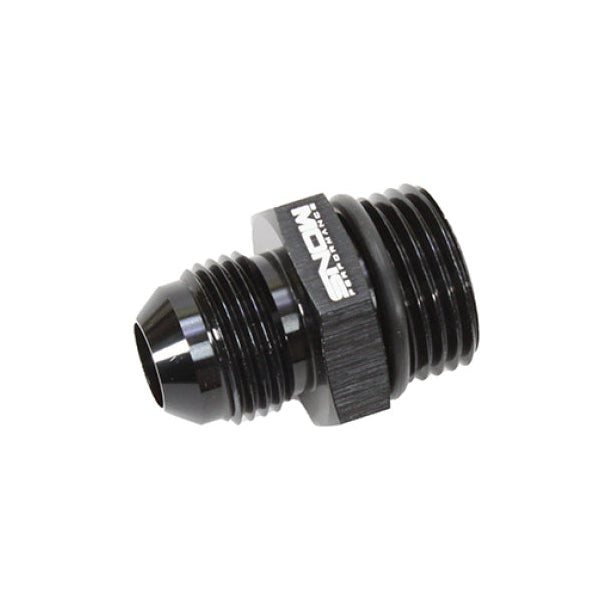

Snow -10 ORB to -8AN Straight Fitting (Black) for GM LS1 LS2 LS3 LS7 Engines
This straight adapter fitting connects -10 ORB ports on GM LS series fuel rails directly to -8AN hose lines. It suits water methanol injection setups and auxiliary fuel systems on LS-powered vehicles. The design delivers a secure high-pressure seal for reliable performance under boost.
Key Features
- CNC Machined Construction: Built from 6061-T6 billet aluminum for strength that handles 300+ PSI without failure
- Black Anodized Finish: Protects against corrosion and fuel exposure while matching black hard line plumbing
- SAE -10 ORB Port: O-ring boss thread (7/16-20 UNF) creates leak-proof seal in standard LS fuel rail ports
- -8AN Male Flare: 3/4-16 thread fits all -8AN hose ends for straightforward hose connections
- Straight Configuration: Enables clean inline routing to minimize flow restrictions in tight engine bays
Product Notes
- Inspect port threads for compatibility before installation
- Compatible with Snow Performance plumbing kits and EFI systems
- Packaged in anti-static bag inside small cardboard box
Installation Notes
- Professional installation recommended.
- Apply PTFE tape to AN flare threads if desired. ORB side uses pre-installed O-ring
- Torque ORB to 18-22 ft-lbs and AN flare hand-tight plus 1/4 turn
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997-2004 | Chevrolet | Corvette | C5 LS1 |
| 2005-2013 | Chevrolet | Corvette | C6 LS2 LS3 LS7 |
| 1998-2002 | Chevrolet | Camaro | Z28 SS LS1 |
| 1998-2002 | Pontiac | Firebird | Trans Am WS6 LS1 |
| 1999-2007 | Chevrolet | Silverado 1500 | 5.3L LM7 L59 |
| 2004-2006 | Pontiac | GTO | LS1 LS2 |
| 2010-2015 | Chevrolet | Camaro | SS L99 LS3 |
| 1999-2013 | Chevrolet | Silverado 2500 | 6.0L LQ4 LQ9 |
Why Choose Snow Performance?
- Develops water methanol components used in NHRA and NASA racing
- Manufactures fittings in USA with tight tolerances for boost reliability
- Engineers adapters tested to 500 PSI burst pressure
Frequently Asked Questions
-
Q: Will this fit factory LS fuel rails?
A: Yes it threads directly into -10 ORB ports on OEM and aftermarket rails for LS1 through LS7 including truck and Gen IV variants -
Q: What finish and material details?
A: 6061-T6 aluminum body with Type II black anodizing for fuel and corrosion resistance plus color coordination -
Q: What torque specs for install?
A: ORB side 18-22 ft-lbs with O-ring lubed. AN flare snug plus 1/4 turn. pro tuning advised for EFI setups
Shipping & Handling
- Method: USPS First Class or UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: 4 x 3 x 1 inch box with protective padding
- Weight: 1 oz
