SKU: 11479 | UPC: 690092174613

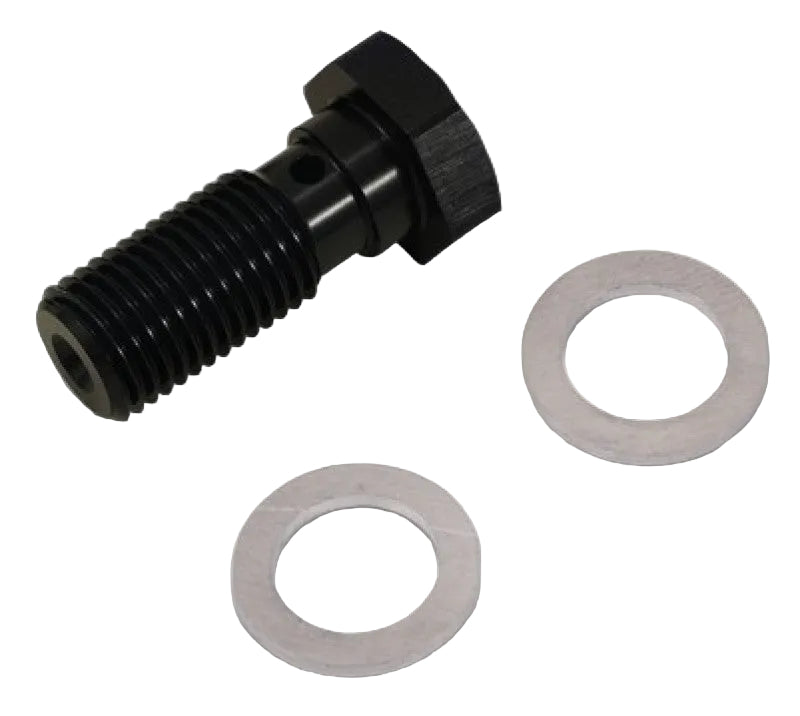

Vibrant Banjo Bolt Thread Size 5/8in - 20 Bolt Length 24mm - Fits 1962-2024 Chevy Small Block Ford SB Toyota 2JZ Nissan RB26 Subaru WRX
Vibrant Performance banjo bolts deliver reliable connections for high-pressure fuel oil and brake systems in performance vehicles. Machined from 6061 aluminum alloy with black anodized finish these bolts fit universal fabrication setups using -8AN banjo hose ends. Crush washers ensure a tight seal under extreme conditions for consistent performance in drag racing circle track and street builds.
Key Features
- 6061 Aluminum Alloy Construction: Delivers lightweight strength that reduces overall system weight without sacrificing durability in demanding race and street applications
- Black Anodized Finish: Resists corrosion and wear while providing a professional blacked-out appearance that matches modern engine bays
- 5/8in - 20 Thread Size: Matches OEM and aftermarket banjo ports precisely for secure threading and vibration resistance
- 24mm Bolt Length: Provides correct reach for proper crush washer compression in standard banjo fittings
- Includes Two Crush Washers: Copper washers deform on install to create immediate high-pressure seal preventing leaks
Product Notes
- Pair with -8AN banjo fittings for fuel injection oil feed/drain or hydraulic brake lines
- Inspect washers for reuse never reuse deformed ones
- Packaged for protection during transit
Installation Notes
- Professional installation recommended.
- Clean all threads before assembly and torque to manufacturer specs typically 20-25 ft-lbs
- Works with standard AN banjo ends and adapters
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Various | All Models | Fuel Oil Brake Systems |
| 1962-2024 | Chevrolet | Small Block | V8 Engines |
| 1986-2024 | Ford | SB Ford | Windsor Cleveland |
| 1990-2024 | Toyota | 2JZ-GTE | Supra Turbo |
| 1989-2024 | Nissan | RB26DETT | Skyline GT-R |
| 1997-2024 | Subaru | WRX STI | Turbo Models |
Why Choose Vibrant Performance?
- Proven reliability in drag racing circle track and street performance builds
- CNC machined components ensure consistent quality and fit
- Extensive lineup supports full custom fabrication projects
Frequently Asked Questions
-
Q: What AN hose size does this banjo bolt support
A: Specifically designed for -8AN banjo hose ends common in high-flow fuel and oil systems -
Q: What material and finish are used
A: Made from 6061-T6 aluminum alloy with black anodized coating for corrosion protection and heat resistance -
Q: What is included and any warranty info
A: Includes two copper crush washers kit ready to install contact Vibrant for warranty details
Shipping & Handling
- Method: USPS Priority or UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective poly bag in 2 x 2 x 1 inch box
- Weight: 0.05 lbs
