SKU: 11566 | UPC: 690092171292

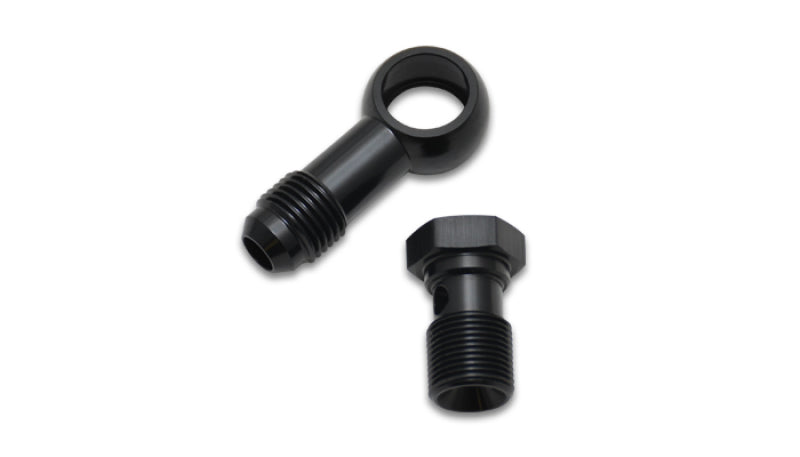

Vibrant Performance Single -4AN 9/16-24 Aluminum Male Banjo Adapter Assembly Universal GM LS Ford Mustang EFI
Vibrant Performance Single Banjo Adapter Assemblies connect -4AN AN fuel lines to 9/16-24 male banjo fittings in fuel systems. These adapters work with performance EFI setups on GM LS-Series 1997-2023 trucks cars Ford Mustang GT Coyote 2005-2023 and universal import tuners like 2JZ SR20 fuel pumps rails regulators. Crafted from 6061-T6 aluminum with black anodized finish they ensure lightweight strength corrosion resistance and leak-free high-flow fuel delivery under pressure.
Key Features
- 6061-T6 Aluminum Alloy: Delivers high strength corrosion resistance and reduced weight ideal for demanding performance fuel applications
- Black Anodized Finish: Guards against wear boosts long-term durability and provides clean professional look in engine bays
- -4AN to 9/16-24 Male Banjo: Creates exact fit between AN fuel lines and standard banjo ports on pumps rails regulators for seamless integration
- Positive Seal Design: Maintains zero leaks at high pressures for safe reliable operation in racing street or track conditions
- Includes Two Crush Washers: Allows instant installation with proven sealing performance one spare included for convenience
Product Notes
- Verify 9/16-24 banjo port compatibility before installation
- Black anodized finish provides consistent corrosion protection
- Compact design fits tight fuel system spaces
Installation Notes
- Professional installation recommended.
- Clean all threads and surfaces prior to assembly for best seal
- Torque to 15-20 ft-lbs replace crush washer each time banjo is removed
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All | Fuel Systems w/ 9/16-24 Banjo Ports |
| 1997-2023 | GM | LS-Series | Trucks Cars Performance |
| 2005-2023 | Ford | Mustang | GT Coyote EFI |
| Universal | Import | EFI Tuners | 2JZ SR20 Fuel Rails |
Why Choose Vibrant Performance?
- Established leader in fuel plumbing and exhaust components
- Precision CNC machined for exact tolerances
- Built for racing demands with proven reliability
Frequently Asked Questions
-
Q: Does this fit standard performance fuel systems?
A: Yes universal design matches 9/16-24 banjo ports on most aftermarket fuel pumps rails regulators and injectors -
Q: What material and finish are used?
A: 6061-T6 aluminum alloy with black anodized coating for strength lightweight and wear resistance -
Q: What are the torque specs for installation?
A: Torque to 15-20 ft-lbs after cleaning threads use new crush washer each time banjo bolt is removed for secure seal
Shipping & Handling
- Method: UPS Ground USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Secure padded box 2.5 x 1.5 x 1 inches
- Weight: 0.05 lb
