SKU: HFX2-7F71

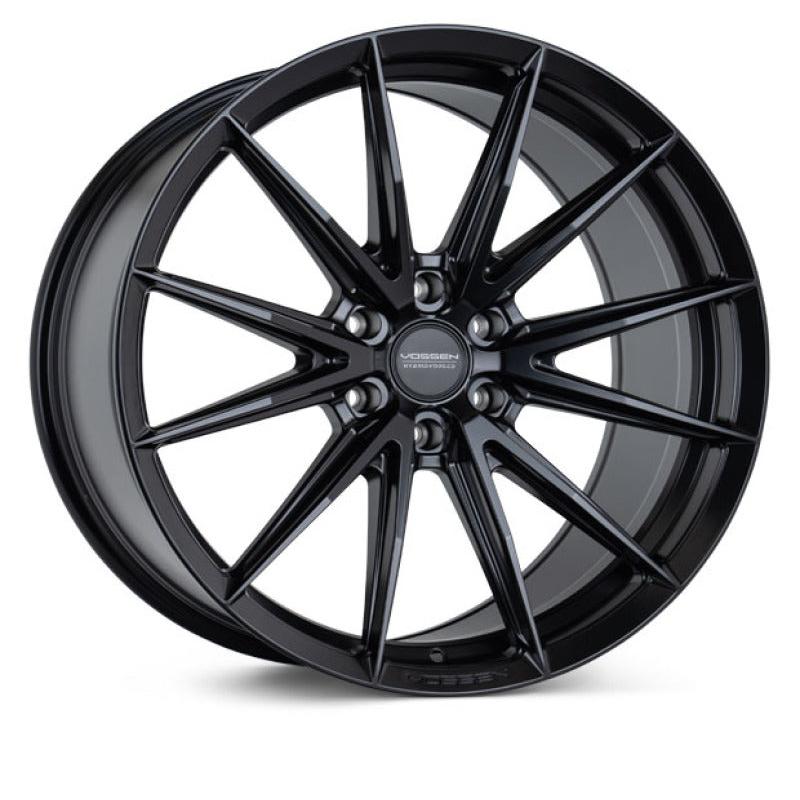

Vossen HFX-2 17x9 6x135 ET0 Super Deep 87.1 Satin Black Wheel for 2004-2023 Ford F-150 Expedition Navigator
The Vossen HFX-2 17x9 wheel features a 6x135 bolt pattern ET0 offset super deep concave profile and 87.1mm hub bore in satin black finish. It bolts directly onto 2004-2023 Ford F-150 Expedition and Lincoln Navigator models for an aggressive wide stance. Flow-formed construction cuts unsprung weight to 27.8 lbs per wheel boosting acceleration braking and ride quality over stock wheels.
Key Features
- Flow-Formed 6061-T6 Aluminum: Heat-treated one-piece design delivers forged-level strength at reduced weight of 27.8 lbs per wheel for sharper handling and fuel efficiency.
- Super Deep Concave: ET0 offset creates dramatic deep dish look filling fenders on lifted trucks while maintaining stability.
- Precise Specifications: 17x9 size 6x135 bolt pattern and 87.1mm hub-centric bore ensure perfect hub fit without vibrations on Ford applications.
- Satin Black Finish: Multi-layer coating resists brake dust road salt and UV damage for long-lasting gloss-free appearance.
- High Load Rating: Supports 2650 lbs per wheel exceeding OEM standards for heavy-duty towing and off-road use.
Product Notes
- Super deep ET0 fitment on stock suspension may require 2-inch lift or minor fender trimming for clearance.
- Clean wheels regularly with pH-neutral soap to preserve satin black finish.
- Ships in protective foam-lined box measuring 20x20x12 inches weighing 35 lbs total.
Installation Notes
- Professional installation recommended.
- Torque lug nuts to 140 ft-lbs in star pattern after 100 miles.
- Hub-centric design fits Ford 87.1mm bore no spacers needed includes center caps.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004-2008 | Ford | F-150 | All |
| 2009-2014 | Ford | F-150 | All |
| 2015-2020 | Ford | F-150 | All |
| 2021-2023 | Ford | F-150 | All |
| 2007-2017 | Ford | Expedition | All |
| 2018-2023 | Ford | Expedition | All |
| 2007-2014 | Lincoln | Navigator | All |
| 2015-2023 | Lincoln | Navigator | All |
Why Choose Vossen?
- Proven in SEMA shows and track events with drivers worldwide.
- Flow-formed process matches forged performance at accessible price.
- Engineered in Miami with exact tolerances for American trucks.
Frequently Asked Questions
-
Q: Will this wheel fit my 2018 Ford F-150 with stock suspension?
A: Yes bolts on directly but super deep ET0 profile pushes tires outward recommend 2-inch leveling kit for full clearance without rubbing. -
Q: What material and construction method is used?
A: One-piece flow-formed from 6061-T6 aircraft-grade aluminum heat-treated for maximum strength and lightness at 27.8 lbs. -
Q: What is the warranty coverage?
A: Lifetime structural warranty against defects plus one-year finish warranty when registered on Vossen site.
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Foam-padded individual box 20x20x12 inches
- Weight: 27.8 lbs per wheel 35 lbs shipped
