Quiet, High Flow Fuel Delivery For Serious Builds

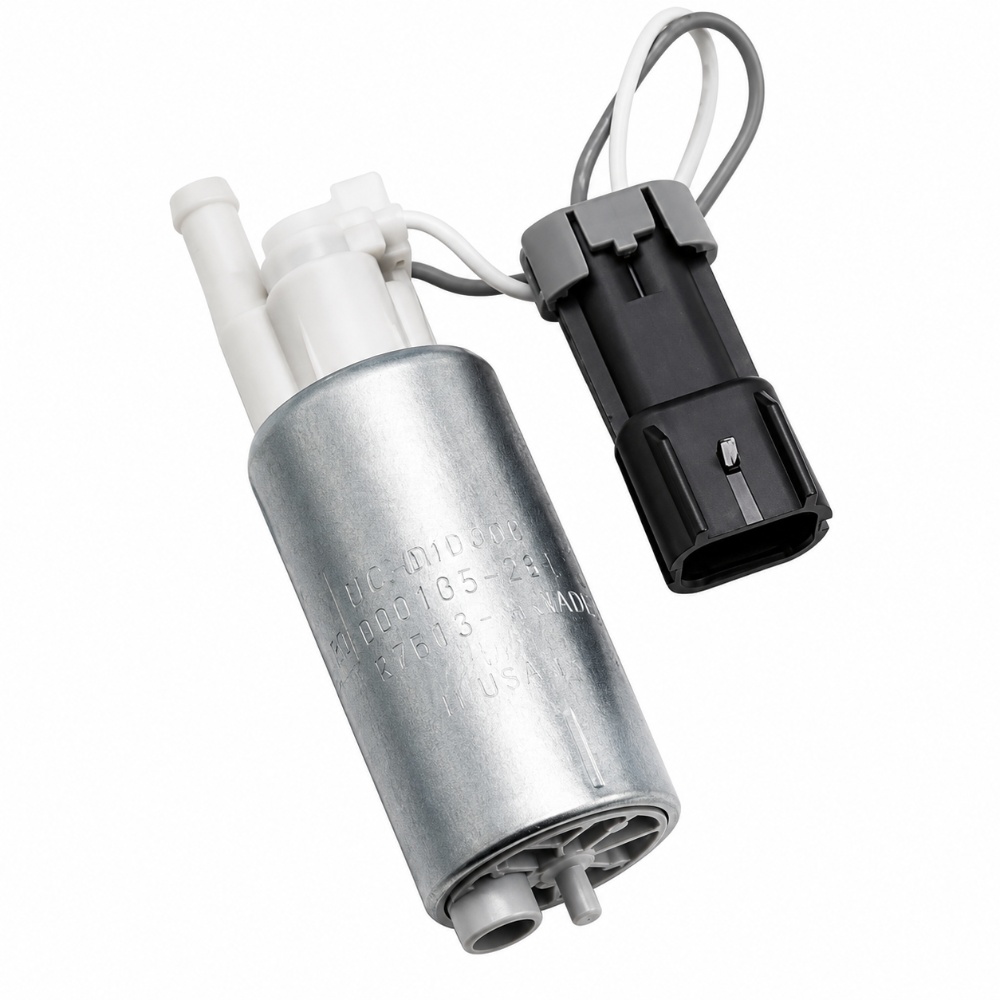

Factory fuel pumps run out of headroom fast once horsepower climbs, leaving high output engines starved for fuel under load. The Walbro F10000302 is an improved aftermarket version of the original Ford GT Supercar fuel pump, delivering higher flow and broader fuel compatibility in a nearly silent, compact turbine design.
Key Features
- Improved aftermarket version of the OE Ford GT Supercar fuel pump
- Rated for 250 LPH at 13.5V and 40 PSI
- Compatible with gasoline, race gas, and ethanol blends up to E85
- Single channel turbine design for nearly silent operation
- Includes a fuel safe sealed Delphi electrical connector
- Built in pressure relief valve
- Made in the USA by TI Automotive
Specifications
| Detail | Value |
|---|---|
| Manufacturer | Walbro |
| Flow Rate | 250 LPH @ 13.5V, 40 PSI |
| Outlet Diameter | 8mm |
| Body Diameter | 36mm |
| Overall Length | 115.7mm (inlet to outlet) |
| Fuse Rating | 20A |
| Connector | Sealed Delphi electrical connector |
| Check Valve | None (must run continuously) |
| Fuel Compatibility | Gasoline, race gas, ethanol up to E99 |
What's Included
- 1 in-tank fuel pump
About Walbro
Walbro, manufactured by TI Automotive, is a longtime supplier of OE and aftermarket fuel pumps built for demanding high output applications. Their in-tank turbine pumps are widely used across returnless and return style fuel systems where quiet, reliable flow is required.
Related Parts on Our Site
FAQ
What is the F10000302?The F10000302 is an improved aftermarket version of the Ford GT Supercar fuel pump, rated for 250 LPH and compatible with ethanol blends up to E85.
Can this pump be used with E85 fuel?Yes, this pump is compatible with gasoline, race gas, and ethanol blends up to E99.
Does this pump have an internal check valve?No, this pump does not have a check valve, so it must run continuously whenever installed rather than cycling on and off in a staged setup.
Can this be used in a returnless fuel system?Yes, this pump supports both return and electronic returnless fuel system configurations.
Does this pump require a prefilter?Yes, a prefilter on the inlet side is required, an appropriately sized Walbro filter sock or universal filter is recommended.
How loud is this pump when running?The single channel turbine design runs nearly silent compared to many aftermarket high flow pumps.
What fuse rating should I use with this pump?Each installed pump should be fused at 20A.
Is this pump suitable for methanol fuel?No, this pump is not recommended for use with methanol fuels.
Install Instructions
- Safely relieve fuel system pressure and disconnect the battery before starting
- Access and remove the factory fuel pump assembly from the tank
- Transfer the pump into the housing or module following the recommended prefilter and wiring setup
- Connect the sealed Delphi electrical connector and confirm fuse rating is set to 20A
- Reinstall the fuel pump assembly and check for leaks before starting the engine
