SKU: 140-10941-DR

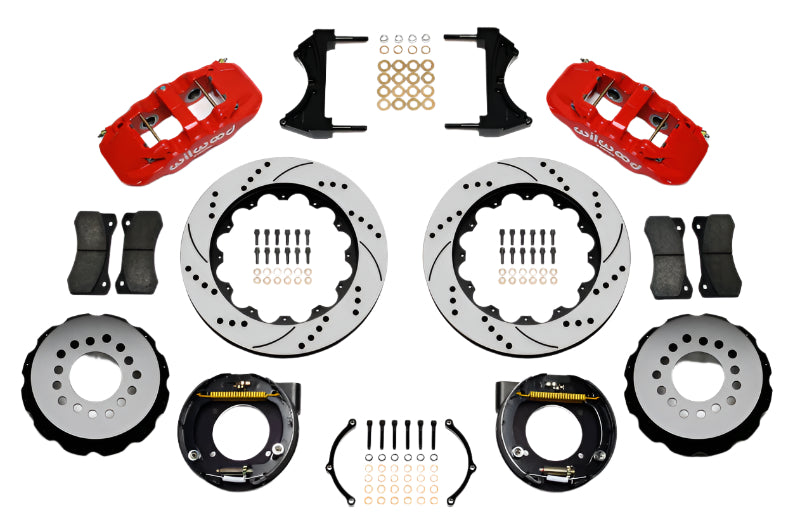

AERO4 Big Brake Rear Parking Brake Kit
AERO4 Radial rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. AERO4 four piston calipers, 12.88" or 14.00” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.
|
Kit Summary
|
|
|
Rear End Axle:
|
Large Chevy C10
|
|
Axle Offset:
|
2.42
|
|
Mount Type:
|
Radial
|
|
Caliper Type:
|
4 - Red Powder Coat
|
|
Rotor Diameter:
|
14.00
|
|
Min Wheel Diameter Req'd*:
|
18
|
AERO4 Big Brake Rear Parking Brake Kit
AERO4 Big Brake Rear Axle Kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the AERO4 radial mount calipers, High friction BP compound pads, and oversized 14.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
|
AXLE OFFSET: 2.42

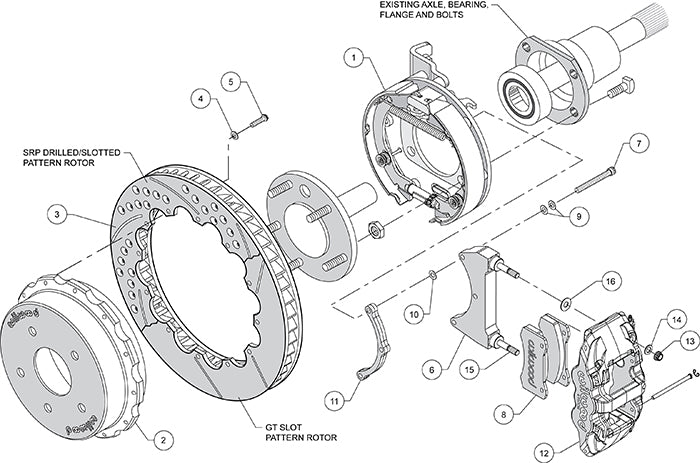

Check the diagram above and verify this measurement. This kit may be available in several different offsets.
|
BRAKE KIT:
AERO4 Big Brake Rear Parking Brake Kit
This Brake Kit is Compatible with the Following Vehicle Makes: Chevrolet CPP (Classic Performance Prod) Detroit Speed GMC Ridetech
Note:
Kit may fit other vehicles,
REAR END:
Large Chevy C10 - Rear Kit
AXLE OFFSET:
2.42
For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
|
Calipers
|
|
|
Left Hand - Part No:
|
120-13338-RD
|
|
Right Hand - Part No:
|
120-13338-RD
|
|
Type:
|
AERO4
|
|
Finish Color:
|
Red Powder Coat
|
|
Piston Count:
|
4
|
|
Piston 1 Bore (in):
|
1.12
|
|
Piston 2 Bore (in):
|
1.12
|
|
Piston Area (In²):
|
1.98
|
|
Piston Type:
|
Stainless
|
|
Mount Type:
|
Radial
|
|
Brake Pad Plate:
|
6617
|
|
Brake Pad Area (In²):
|
11.1
|
|
Brake Pad Volume (In³):
|
5.2
|
|
Pad Compound:
|
BP-10
|
|
AERO4 Caliper - Red Powder Coat
|
|
|
Rotors
|
|
|
Left Hand - Part No:
|
160-8401-BK
|
|
Right Hand - Part No:
|
160-8400-BK
|
|
Type:
|
SRP Drilled Rotor
|
|
Style:
|
SRP Drilled & Slotted
|
|
Surface Finish:
|
Black Electro Coat
|
|
Material:
|
Spec-37 Iron
|
|
Outside Diameter (in):
|
14.00
|
|
Width (in):
|
1.10
|
|
Vane Count:
|
72 CV
|
|
Design Type:
|
SRP-BLK
|
|
Bedded:
|
No
|
|
Dynamically Balanced:
|
No
|
|
SRP Drilled Rotor - Spec-37 Iron - Black Electro Coat
|
|
|
Rotor Hats
|
|
|
Hat - Part No:
|
170-139090
|
|
Type:
|
Parking Brake Hat - Standard
|
|
Material:
|
Aluminum
|
|
Finish Color:
|
Black E-Coat
|
|
Hat Offset Dimension (in):
|
1.540
|
|
Bolt Circle 1:
|
5 x 4.50
|
|
Bolt Circle 2:
|
5 x 4.75
|
|
Bolt Circle 3:
|
5 x 5.00
|
|
Stud Diameter - BC 1:
|
0.520
|
|
Stud Diameter - BC 2:
|
0.520
|
|
Stud Diameter - BC 3:
|
0.520
|
|
|
Fitment
1975 - 1980, 1982, 1984 - 1986
