SKU: 140-2119-BD

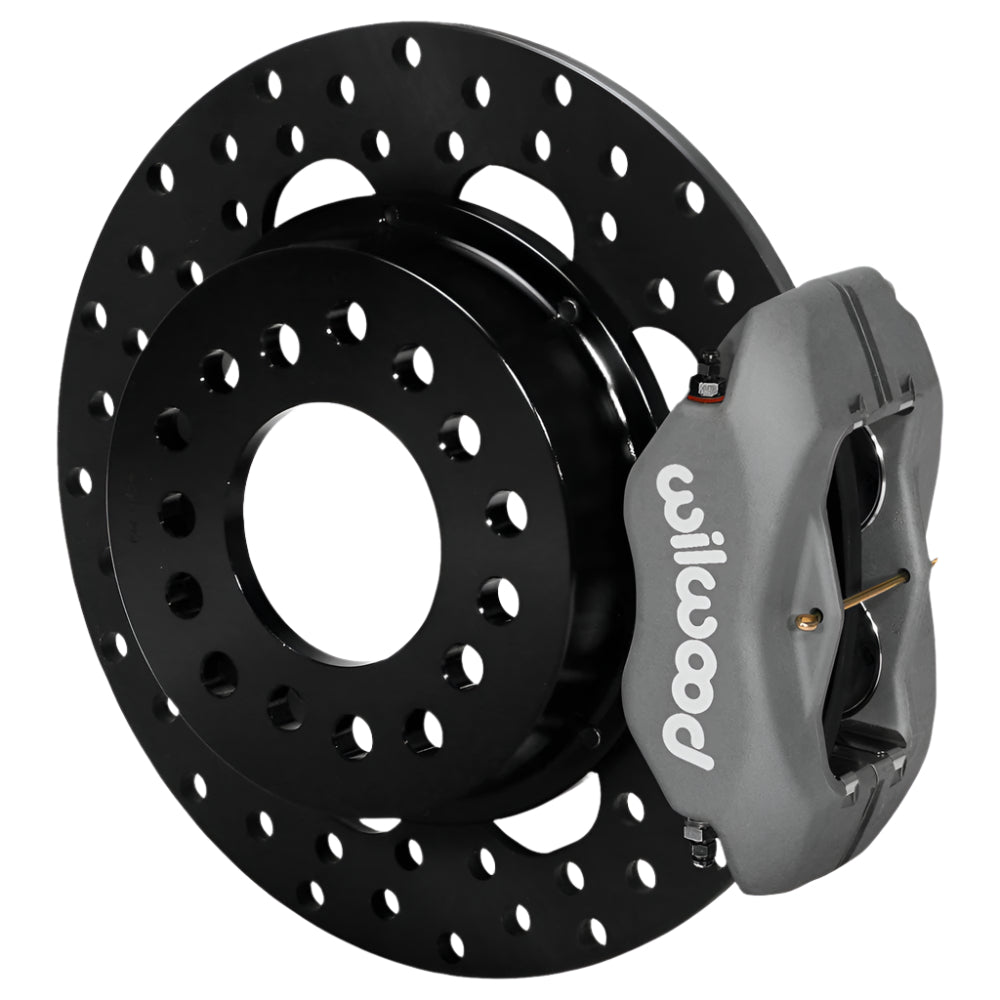

Forged Dynalite Rear Drag Brake Kit
FDL Rear Drag kits are true bolt-on kits available for all popular muscle car rear axles and aftermarket rears built with custom axle ends. Kits in this group are purpose built for sportsman category door cars and others with full functional four-wheel disc brakes. Based on the specific style of housing end and axle offset, mounting kits securely install the four-piston forged Dynalite caliper over 3/8” plate steel rotors that are mounted to the axle with an aluminum hat. Standard kits include solid face rotors, with optional drilled rotor kits available to further reduce driveline weight in classes where every weight advantage is necessary.
-
BRAKE KIT: Forged Dynalite Rear Drag Brake Kit
- This Brake Kit is Compatible with the Following Vehicle Makes
-
Note: Kit may fit other vehicles.
-
REAR END: Big Ford New Style - Rear Kit
-
AXLE OFFSET: 2.50

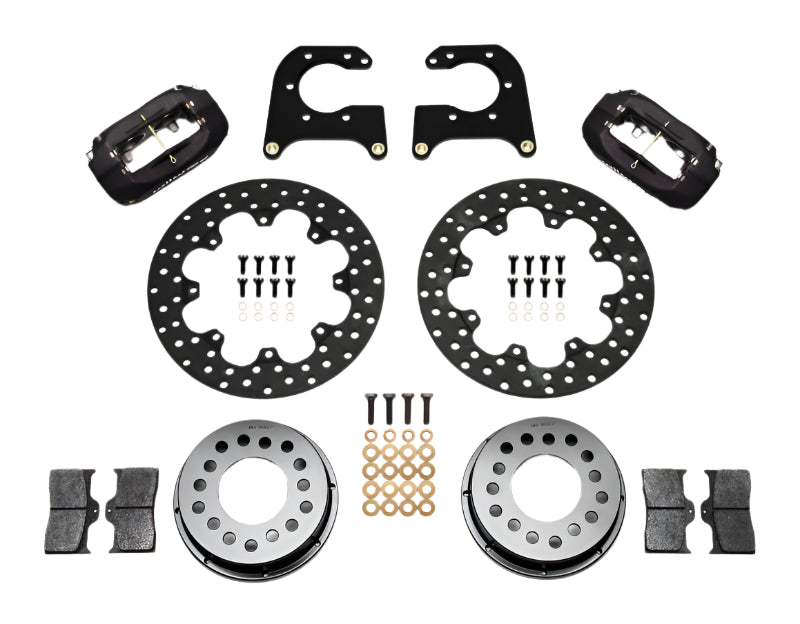

Kit Components & Specifications
|
Kit Summary
|
|
|
Rear End Axle:
|
Big Ford New Style
|
|
Axle Offset:
|
2.50
|
|
Mount Type:
|
Lug
|
|
Caliper Type:
|
4 - Type III Anodize
|
|
Rotor Diameter:
|
11.44
|
|
Min Wheel Diameter Req'd*:
|
15
|
|
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel
|
|
|
Calipers
|
|
|
Left Hand - Part No:
|
120-13843
|
|
Right Hand - Part No:
|
120-13843
|
|
Type:
|
Forged Dynalite Internal
|
|
Finish Color:
|
Type III Anodize
|
|
Piston Count:
|
4
|
|
Piston 1 Bore (in):
|
1.75
|
|
Piston 2 Bore (in):
|
1.75
|
|
Piston Area (In²):
|
4.80
|
|
Piston Type:
|
Stainless
|
|
Mount Type:
|
Lug
|
|
Brake Pad Plate:
|
7112
|
|
Brake Pad Area (In²):
|
6.36
|
|
Brake Pad Volume (In³):
|
2.1
|
|
Pad Compound:
|
BP-10
|
|
Forged Dynalite Internal Caliper - Type III Anodize
|
|
|
Rotors
|
|
|
Left Hand - Part No:
|
160-1601
|
|
Right Hand - Part No:
|
160-1601
|
|
Type:
|
Drilled Steel Rotor
|
|
Style:
|
Drilled
|
|
Surface Finish:
|
Black Oxide
|
|
Material:
|
Steel
|
|
Outside Diameter (in):
|
11.44
|
|
Width (in):
|
0.35
|
|
Vane Count:
|
Solid
|
|
Design Type:
|
Solid
|
|
Bedded:
|
No
|
|
Dynamically Balanced:
|
No
|
|
Drilled Steel Rotor - Steel - Black Oxide
|
|
|
Rotor Hats
|
|
|
Hat - Part No:
|
170-0317
|
|
Type:
|
Drag Hat - Standard
|
|
Material:
|
Aluminum
|
|
Finish Color:
|
Black E-Coat
|
|
Hat Offset Dimension (in):
|
1.590
|
|
Bolt Circle 1:
|
5 X 4.50
|
|
Bolt Circle 2:
|
5 X 4.75
|
|
Bolt Circle 3:
|
5 X 5.00
|
|
Stud Diameter - BC 1:
|
0.520
|
|
Stud Diameter - BC 2:
|
0.520
|
|
Stud Diameter - BC 3:
|
0.520
|
|
Drag Hat - Standard - Aluminum - Black E-Coat
|
|
Parts & Accessories
|
Caliper Parts
|
|
|
O-ring Kit:
|
130-2655
|
|
Replacement Dustboot:
|
N-A
|
|
Replacement Piston 1:
|
200-7528
|
|
Replacement Piston 2:
|
200-7528
|
|
Replacement Piston 3:
|
N-A
|
|
Replacement Piston 4:
|
N-A
|
|
CrossOver O-Ring Kit:
|
130-10540
|
|
Crossover Tube:
|
N-A
|
|
Self-Bleeder Tube:
|
N-A
|
|
Bridge Bolt Kit:
|
N-A
|
|
Wear Plate - Left Hand:
|
300-5875
|
|
Wear Plate - Right Hand:
|
300-5875
|
|
Pad Retainer:
|
180-0054
|
|
Bleed Screw Kit:
|
220-0627
|
