The Two-Piece Front Brake Rotor Built for the 707-HP Jeep Grand Cherokee Trackhawk and Dodge Durango SRT Hellcat

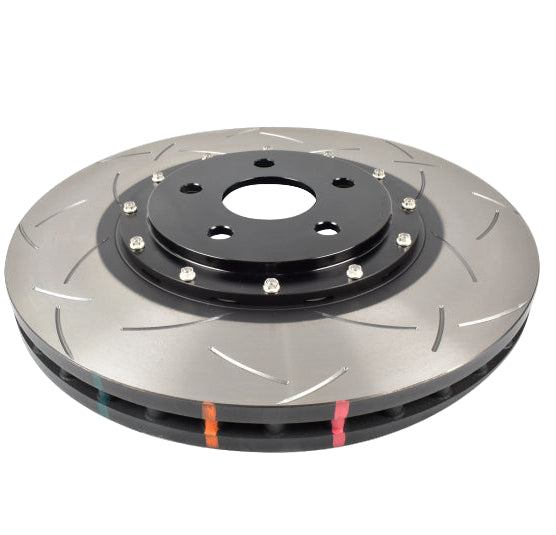

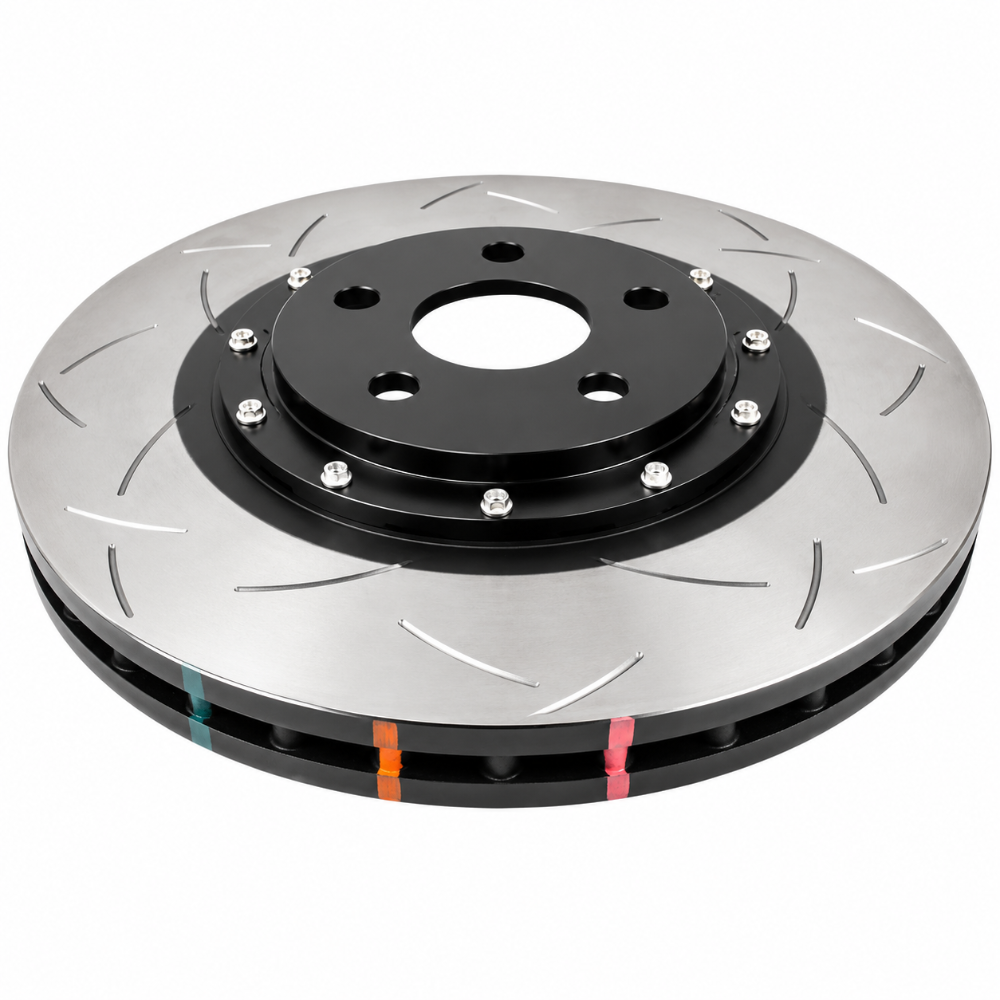

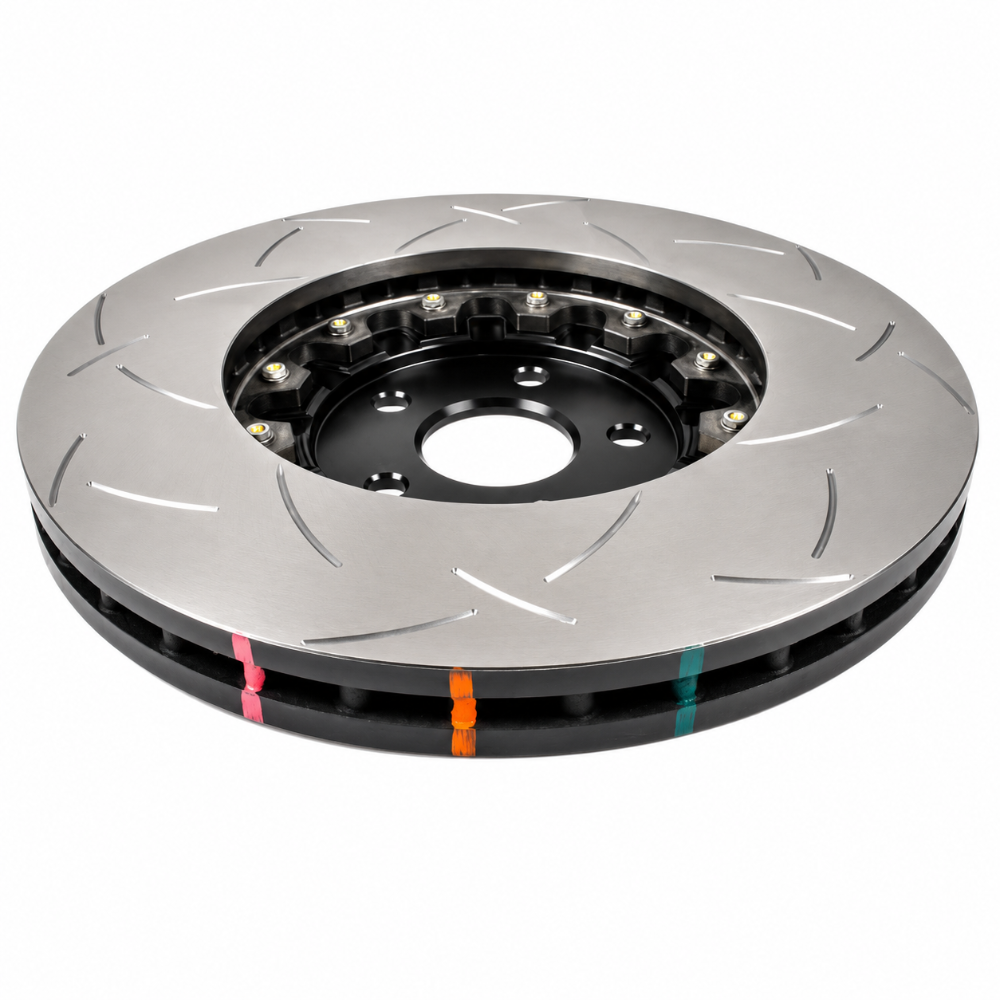

The DBA 5000 Series T3 Two-Piece Slotted Front Brake Rotor (DBA53919BLKS) is an OOM-spec direct replacement engineered for the 400mm front brake systems on the 2018-2021 Jeep Grand Cherokee Trackhawk and 2021-2026 Dodge Durango SRT Hellcat. Constructed with a cast iron disc ring and a black-anodized aluminum hat, DBA53919BLKS delivers superior heat management and consistent pedal feel for high-performance street driving, track days, and club racing. Replaces OEM part numbers 68305562AB and 68305562AA. Sold individually; two rotors required per axle.
Key Features
- 400mm outer diameter and 36mm disc thickness matched to the factory Trackhawk and Durango SRT Hellcat front brake caliper clearance

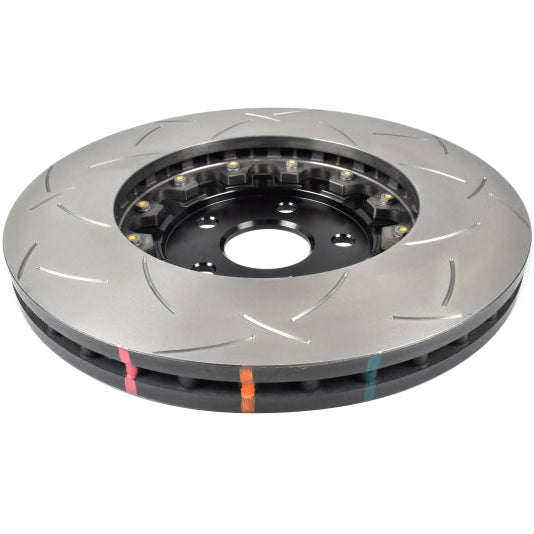

- DBA patented T3 tri-directional CNC-machined slot pattern for quieter, more consistent braking
- T3 slots create additional exit points for brake pad dust and gases, reducing fade during sustained braking
- Two-piece construction with black-anodized 6061 aluminum hat reduces unsprung rotational mass
- R KP vented vane design maximizes airflow through the rotor for continuous cooling under load
- Direct replacement for OEM part numbers 68305562AB and 68305562AA with no modifications required
- DBA 5000 Series T3 recommended for high-performance street, track day, club racing, and rally applications
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2018-2021 | Jeep | Grand Cherokee | Trackhawk |
| 2021 | Dodge | Durango | SRT Hellcat |
| 2023-2026 | Dodge | Durango | SRT Hellcat |
Specifications
| Detail | Value |
|---|---|
| Part Number | DBA53919BLKS |
| UPC | 9316391458643 |
| Position | Front |
| Outer Diameter | 400mm |
| Brake Disc Thickness | 36mm |
| Minimum Thickness | 36mm |
| Height | 54.5mm |
| Vane Design | R KP Vents |
| Centering Diameter | 72mm |
| Pitch Circle Diameter | 127mm |
| Number of Holes | 5 |
| Surface Design | Slotted (T3) |
| Weight | 28.7 lbs (each) |
| Construction | Two-Piece (Cast Iron Ring / Aluminum Hat) |
| Hat Finish | Black Anodized |
| OEM Replacement | 68305562AB, 68305562AA |
| Quantity | Sold Individually (2 required per axle) |
What's Included
- 1x DBA53919BLKS 5000 Series T3 Two-Piece Front Brake Rotor
- Black-anodized aluminum hat pre-assembled to disc ring
- Mounting hardware included
About DBA
Disc Brakes Australia (DBA) has been engineering performance brake rotors since 1969 and is one of the most respected brake manufacturers in the world. Their 5000 Series rotors are developed and tested on Australian road circuits and race tracks, then refined for global performance and OEM-replacement applications. DBA's T3 slot pattern is a patented design exclusive to their product line, offering measurable improvements in braking consistency, noise reduction, and long-term pad and rotor wear.
Complete the Set
Complete your DBA brake upgrade with the matching rear and replacement ring:
- DBA42633S 4000 Series T3 Rear Brake Rotor - the direct-fit one-piece rear rotor for the Trackhawk and Durango SRT Hellcat
- DBA53919.1S 5000 Series T3 Front Brake Ring - replacement ring for when your DBA53919BLKS ring wears to minimum thickness
Frequently Asked Questions
Does DBA53919BLKS fit the 2021 Jeep Grand Cherokee Trackhawk?Yes. DBA53919BLKS is a direct-fit front brake rotor for the 2018-2021 Jeep Grand Cherokee Trackhawk, replacing OEM part numbers 68305562AB and 68305562AA with no modifications required.
Does DBA53919BLKS fit the Dodge Durango SRT Hellcat?Yes. DBA53919BLKS fits the 2021 and 2023-2026 Dodge Durango SRT Hellcat, which shares the same 400mm front brake assembly as the Jeep Grand Cherokee Trackhawk. Note the Durango SRT Hellcat was not produced in 2022.
What is the outer diameter of the DBA53919BLKS rotor?The outer diameter is 400mm. This is the factory specification for the Trackhawk and Durango SRT Hellcat front brake system and is significantly larger than the rotors used on standard Grand Cherokee and Durango trims.
How many rotors come in the box?DBA53919BLKS is sold individually. Two rotors are required to complete one front axle replacement. You will need to add two units to your cart for a full front brake job.
What does the T3 slot pattern do?DBA's T3 tri-directional CNC-machined slot pattern evacuates brake pad dust, gases, and heat from the rotor face during braking. Compared to the T2 slot, the T3 adds additional exit points that improve consistency, reduce fade during repeated hard stops, and minimize brake squeal under normal operating conditions.
Will DBA53919BLKS fit a standard Grand Cherokee SRT or non-Hellcat Durango?No. The 400mm rotor is exclusive to the Trackhawk and Durango SRT Hellcat. Standard Grand Cherokee SRT and Durango SRT models use a smaller front rotor diameter and a different part number. Always verify fitment by year, make, model, and trim before ordering.
What OEM part numbers does DBA53919BLKS replace?DBA53919BLKS directly replaces Jeep OEM front rotor part numbers 68305562AB and 68305562AA used on the Trackhawk and Durango SRT Hellcat front axle.
Can I use DBA53919BLKS for track driving?Yes. DBA specifically recommends the 5000 Series T3 for high-performance street driving, track days, club racing, and rally use. The two-piece construction and T3 slot pattern are designed to handle sustained heat cycles that would cause OEM single-piece rotors to fade or warp under repeated hard braking.
Does this rotor require bedding in?Yes. DBA53919BLKS requires a proper bedding procedure to seat the brake pads evenly across the rotor surface. Perform 8-10 moderate brake applications from 40 mph down to 5 mph, allowing the brakes to cool completely before performing harder stops. Proper bedding maximizes rotor life and braking performance.
Can the rotor ring be replaced separately?Yes. The two-piece design allows the iron rotor ring to be replaced independently when it reaches minimum thickness, while the aluminum hat is reused. The DBA53919.1S is the replacement ring for this system, available separately in our store.
Installation Instructions
- Safely lift and support the vehicle on jack stands. Remove the front wheel.
- Compress the brake caliper piston using a caliper wind-back tool. Remove the caliper bolts and hang the caliper without stressing the brake line.
- Remove the caliper bracket bolts and set the bracket aside.
- Remove the old rotor. If stuck, tap lightly with a rubber mallet to free it from the hub.
- Clean the hub flange with a wire brush and apply a thin layer of anti-seize to the hub contact surface only.
- Mount DBA53919BLKS onto the hub. Secure temporarily with one lug nut to keep the rotor flat against the hub face.
- Reinstall the caliper bracket and torque bracket bolts to factory specification (typically 125-130 ft-lbs).
- Reinstall the caliper and torque caliper slide pin bolts to spec (typically 25-30 ft-lbs).
- Reinstall the wheel and torque lug nuts to 110 ft-lbs in a star pattern.
- Pump the brake pedal firmly until it feels solid before moving the vehicle.
- Perform the DBA bedding procedure: 8-10 moderate stops from 40 mph to 5 mph, then allow full cool-down before driving aggressively.
