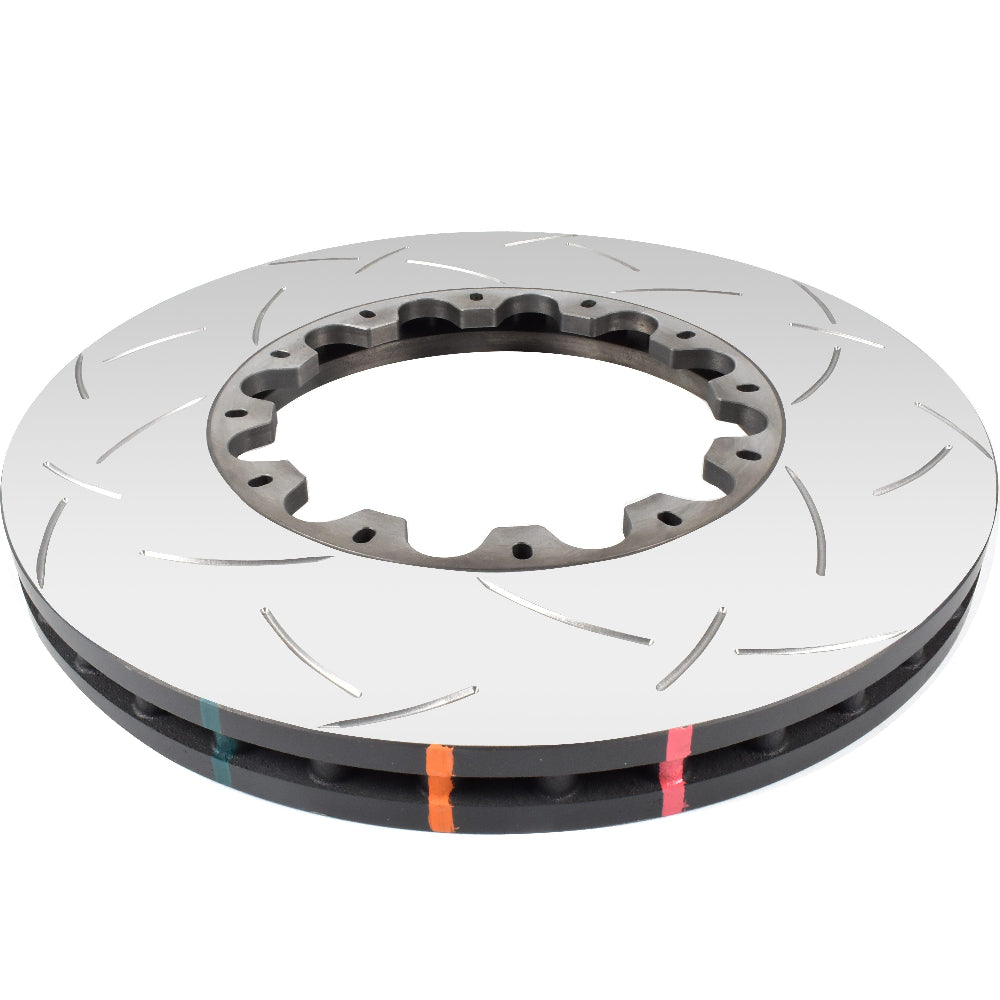

The Direct Replacement Front Brake Ring for DBA 5000 Series T3 Two-Piece Rotor Systems on the Jeep Trackhawk and Dodge Durango SRT Hellcat
The DBA53919.1S is the official OEM-spec replacement front brake ring for DBA's 5000 Series T3 two-piece rotor system on the 2018-2021 Jeep Grand Cherokee Trackhawk and 2021-2026 Dodge Durango SRT Hellcat. This is a ring only; the aluminum hat from your existing DBA53919BLKS assembly is reused. At 400mm outer diameter and 36mm disc thickness, DBA53919.1S restores full braking performance without replacing the entire two-piece rotor assembly. Sold individually; two rings required per front axle.
Key Features
- 400mm outer diameter replacement ring engineered to the same spec as the original DBA53919BLKS front disc
- DBA T3 tri-directional CNC-machined slot pattern for consistent pad bite and reduced fade during sustained braking
- T3 slots provide additional evacuation points for brake pad dust and gases at every rotation
- Ring-only design allows you to replace just the worn iron disc and reuse the existing aluminum hat, significantly lowering replacement cost versus a complete new rotor assembly
- KP vented vane design for continuous cooling airflow through the rotor under load
- High-carbon alloyed iron construction for superior heat absorption and fade resistance
- DBA 5000 Series T3 recommended for high-performance street, track day, club racing, and rally applications
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2018-2021 | Jeep | Grand Cherokee | Trackhawk |
| 2021 | Dodge | Durango | SRT Hellcat |
| 2023-2026 | Dodge | Durango | SRT Hellcat |
Specifications
| Detail | Value |
|---|---|
| Part Number | DBA53919.1S |
| UPC | 9316391458636 |
| Position | Front |
| Product Type | Replacement Brake Ring (Ring Only, Hat Not Included) |
| Outer Diameter | 400mm |
| Brake Disc Thickness | 36mm |
| Minimum Thickness | 34mm |
| Height | 36mm |
| Vane Design | KP Vents |
| Centering Diameter | 185mm |
| Pitch Circle Diameter | 215.9mm |
| Number of Holes | 12 |
| Surface Design | Slotted (T3) |
| Ring Material | High-Carbon Alloyed Iron |
| Compatible Assembly | DBA53919BLKS (hat reused) |
| Quantity | Sold Individually (2 required per axle) |
What's Included
- 1x DBA53919.1S 5000 Series T3 Front Brake Ring (ring only)
- Note: Aluminum hat is NOT included. Reuse the hat from your existing DBA53919BLKS assembly.
About DBA
Disc Brakes Australia (DBA) has been engineering performance brake rotors since 1969 and is one of the most respected brake manufacturers in the world. Their 5000 Series two-piece system is built around the principle that the aluminum hat is a reusable platform and the iron ring is the serviceable wear component. This design allows owners to replace only what is worn, reducing long-term braking system costs while maintaining the same performance standard as the original DBA53919BLKS assembly.
Complete the Set
Shop the other DBA products for a complete front and rear brake solution on your Trackhawk or Durango SRT Hellcat:

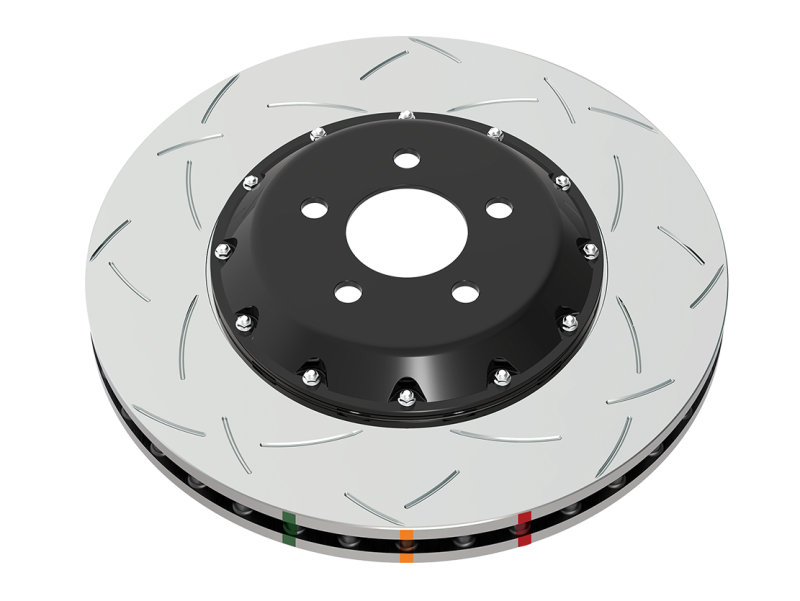

- DBA53919BLKS 5000 Series T3 Two-Piece Front Brake Rotor - the complete front assembly including the aluminum hat (start here if building from scratch)
- DBA42633S 4000 Series T3 Rear Brake Rotor - the matching direct-fit one-piece rear rotor
Frequently Asked Questions
What is the difference between DBA53919BLKS and DBA53919.1S?DBA53919BLKS is the complete two-piece front rotor assembly, including both the iron brake ring and the black anodized aluminum hat. DBA53919.1S is the replacement ring only, designed for when the ring on an existing DBA53919BLKS assembly wears to minimum thickness. The hat from DBA53919BLKS is reused with DBA53919.1S, making this a significantly more cost-effective service option than replacing the full assembly.
Does DBA53919.1S include the aluminum hat?No. DBA53919.1S is the brake ring only. The aluminum hat from your original DBA53919BLKS two-piece rotor is reused. If you need a complete new assembly including the hat, order DBA53919BLKS instead.
Does DBA53919.1S fit the 2018-2021 Jeep Grand Cherokee Trackhawk?Yes. DBA53919.1S is the direct replacement front brake ring for the 2018-2021 Jeep Grand Cherokee Trackhawk, compatible with the DBA53919BLKS two-piece rotor system used on that platform.
Does DBA53919.1S fit the Dodge Durango SRT Hellcat?Yes. DBA53919.1S fits the 2021 and 2023-2026 Dodge Durango SRT Hellcat front brake system, which shares the same 400mm front brake assembly as the Jeep Grand Cherokee Trackhawk. Note the Durango SRT Hellcat was not produced in 2022.
How many rings do I need for a complete front axle replacement?Two rings are required per front axle. DBA53919.1S is sold individually. Add two units to your cart to replace both front brake rings.
What is the outer diameter of the DBA53919.1S ring?The outer diameter is 400mm, matching the factory Trackhawk and Durango SRT Hellcat front brake specification. This is the same diameter as the original DBA53919BLKS ring it replaces.
What is the minimum thickness for DBA53919.1S?The minimum allowable thickness is 34mm. The ring should be replaced when it measures at or near this threshold to maintain safe braking performance. The nominal thickness when new is 36mm.
Can I use DBA53919.1S with any other hat besides the DBA53919BLKS hat?DBA53919.1S is designed specifically for the DBA 5000 Series T3 two-piece front rotor system used on the Trackhawk and Durango SRT Hellcat. It is engineered to mate with the hat supplied in the DBA53919BLKS assembly. Compatibility with other hats is not confirmed by DBA.
Do I need to bed in the brakes after installing DBA53919.1S?Yes. Any time a new brake ring is installed, a proper bed-in procedure is required to seat the pads evenly on the new surface. Perform 8-10 moderate brake applications from 40 mph down to 5 mph, allow full cool-down, then gradually increase braking force over the next several driving sessions before any aggressive use.
Is DBA53919.1S suitable for track use?Yes. DBA's 5000 Series T3 is specifically recommended for track day, club racing, rally, and high-performance street use. The T3 slot pattern and KP vented vane design maintain braking consistency under the sustained heat loads generated during repeated hard stops on track.
Installation Instructions
- Safely lift and support the vehicle on jack stands. Remove the front wheel.
- Remove the brake caliper and hang it without stressing the brake line. Remove the caliper bracket.
- Remove the existing DBA53919BLKS two-piece rotor from the hub.
- Separate the worn DBA53919.1S ring from the aluminum hat by removing the NAS mounting hardware. Retain the hat and all hardware in good condition.
- Install the new DBA53919.1S ring onto the existing aluminum hat. Torque the NAS mounting hardware to DBA specification.
- Clean the hub flange and mount the reassembled two-piece rotor onto the hub. Secure temporarily with one lug nut.
- Reinstall the caliper bracket and torque to factory specification (typically 125-130 ft-lbs).
- Reinstall the caliper and torque slide pin bolts to spec (typically 25-30 ft-lbs).
- Reinstall the wheel and torque lug nuts to 110 ft-lbs in a star pattern.
- Pump the brake pedal firmly until solid before moving the vehicle.
- Perform the DBA bedding procedure: 8-10 moderate stops from 40 mph to 5 mph, then allow full cool-down before driving aggressively.
